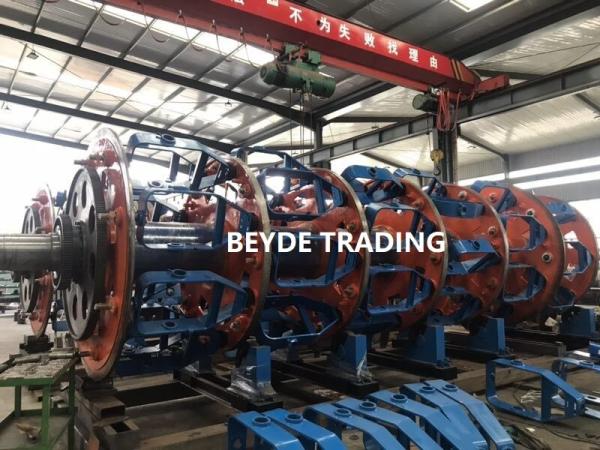

    Cage Planetary Stranding Machine 3.823-28.278 M / Min Easy Installation

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 96 bobbins
    Certification :
    Payment Terms : L/C, T/T
    Supply Ability : 120 Set/Year
    Delivery Time : 70-150 Days after receive deposit
    Price : Negotiate
    • Product Details
    • Company Profile

    Cage Planetary Stranding Machine 3.823-28.278 M / Min Easy Installation

    40 Year Experiences Planetary Cage Stranding Machine 3.823~28..278 m/min
    Technical Parameter
    ModelJL-500JL-630
    Diameter of single wire(mm)Copperø1.5- ø 5.0ø 1.5 5.0
    Aluminumø 1.8- ø 5.0ø 1.8- ø 5.0
    Insulated coresø 2.0- ø 8.0ø 2.0- ø 10
    Stranding pitch6BStep-less, adjustableStep-less, adjustable
    12BStep-less, adjustableStep-less, adjustable
    18BStep-less, adjustableStep-less, adjustable
    24BStep-less, adjustableStep-less, adjustable
    Stranding cage motor power(KW)6B4575
    12B5590
    18B75110
    24B90132
    CapstanMaximum liner speed(m/min)5142
    Motor power(KW)5555
    Taping headMaximum rotating speed(RPM)500500
    Taping pitchStep-less, adjustableStep-less, adjustable
    Motor power(KW)1111


    Advantage:


    1. The expansion connection shafts of the cradle adopting the technology from France, which avoids the abrasion between the shafts and keys. Easy installation and commissioning.

    2. No need of gearboxes nor ground-shafts; no noise, no leakage, lower power consumption, easy maintenance and repair

    3, Siemens S7-200 PLC with profibus can realize on-site monitoring, coordinate between different motors, DANFOSS converter controls the DC MOTORS on and off, operation, and speed control. Parameters could be set, changed and displayed on the TOUCH PANEL. Advance electrical control, easy operating, and reliable operation
