    Eco Friendly Skip Stranding Machine For Aluminum Conductor And Steel Strand

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 1250
    Certification :
    Payment Terms : L/C, T/T
    Supply Ability : 120 Set/Year
    Delivery Time : 70-150 Days after receive deposit
    Price : Negotiate
    • Product Details
    • Company Profile

    Eco Friendly Skip Stranding Machine For Aluminum Conductor And Steel Strand

    Top Quality Skip / Bow Type Wire Stranding Machine for Aluminum Conductor and Steel Strand


    Main Parameter
    Sing core outer diameter7-20mm
    Max laying outer diameterΦ60mm
    Rotation speed200r/min
    Max traction linear speed160m/min
    CAT2000kg
    Pay-off sizePN1250
    Take up sizePN1600-PN2500
    Driving motor45kW(AC)
    Taping motor4.0KW(AC)
    Take up motor60N•M

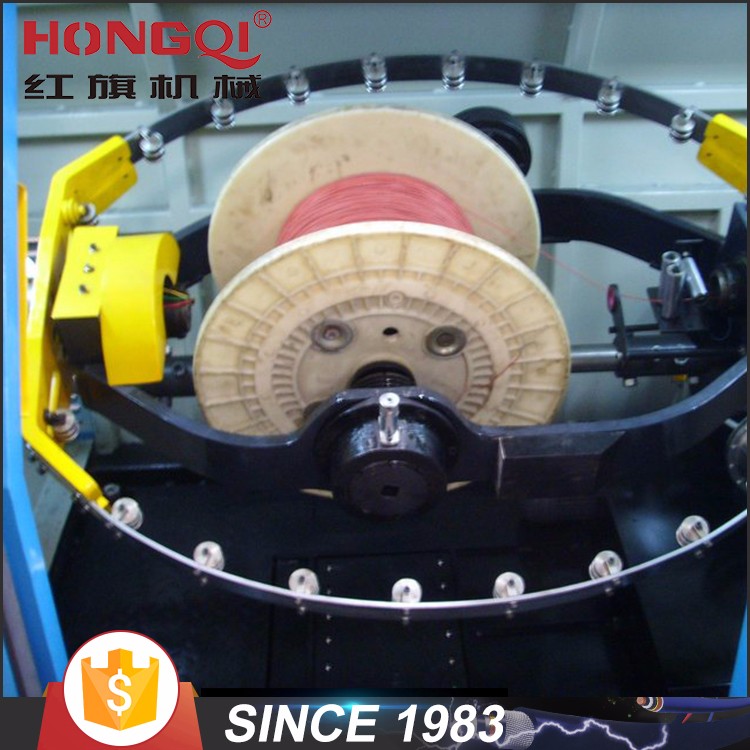

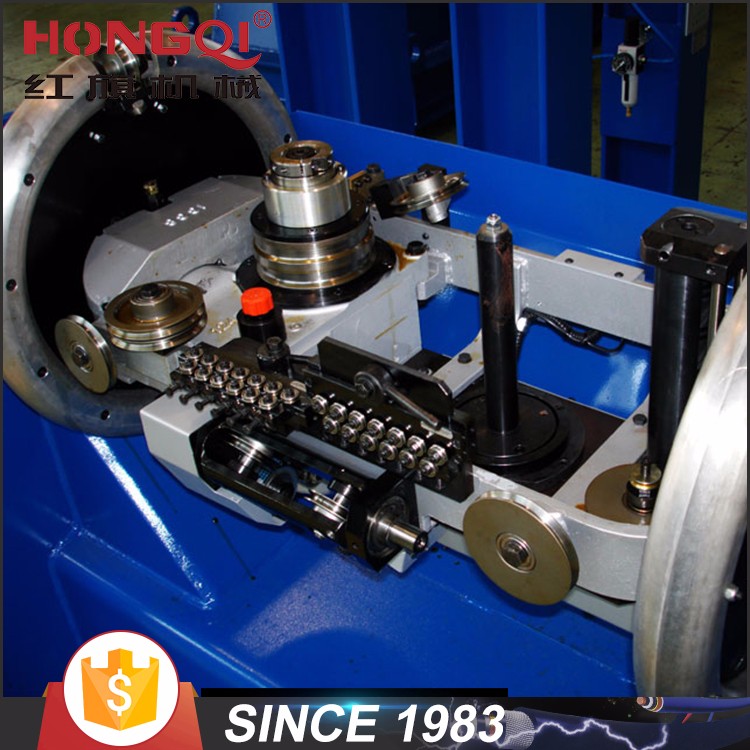

    Product Photos

    skip bow stranding machine (5)skip bow stranding machine (8)skip bow stranding machine (4)

    Features

    1. Heavy Duty frame for high Speed Stability

    2. Timing Belt Drive for each Rotor

    3. Line drive by A.C. or D.C. motors with electronic or mechanical synchronization between line components

    4. Disk type Pneumatic brake for Rotor designed for high speed stopping

    5. Range of Takeups and Payoffs available

    Application

    This machine mainly used for twisting four round insulated cores, back-twisting stranding form, and also with the function of filling and non-metallic taping

    laying up machine

    Component

    • PN1250 Central pay-off 1set
    • 1250/3B cage 1set
    • Die holder 1set
    • Non-metallic taping head 1set
    • Mechanical meter counter 1set
    • CAT 1set
    • Φ2500 Column type take up with traverse 1set
    • Mechanical transmission system 1set
    • Electric control system 1set

    portal take up.jpg


    Packaging & Shipping

    _14
