    Independent Motor Rigid Stranding Machine Jlk-630 With Loading System

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : Side Loading Bobbin System
    Certification :
    Payment Terms : L/C, T/T
    Supply Ability : 120 Set/Year
    Delivery Time : 70-150 Days after receive deposit
    Price : Negotiate
    • Product Details
    • Company Profile

    Independent Motor Rigid Stranding Machine Jlk-630 With Loading System

    Independent Motor Jlk-630/12+18+24 Floor Batch Loading System Rigid Wire Stranding Machine


    Main Parameter

    Model Number500630

    Dia. Of Single Wire(mm)

    Copper1.5-5.0
    Aluminum1.8-5.0
    Max.Section Square(mm2)Cu500
    Al630
    Max Linear Speed(m/min)7.32-55.297.62-57.93
    Pay-off In CagePND500
    Stranding Pitch(mm)45-110556-1259
    Take-up Bobbins(mm)PN1600-PN2500
    Capstan(mm)2000mm

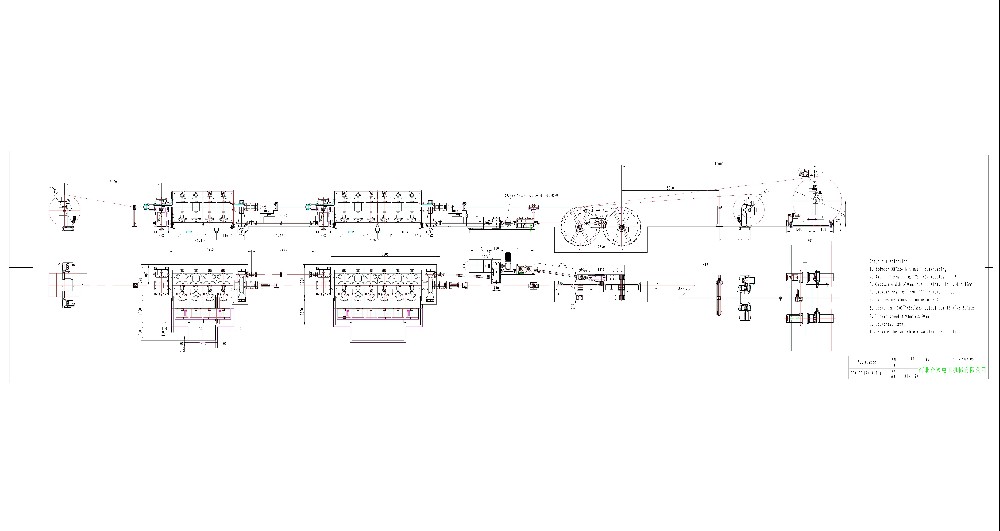

    Structure diagram

    JLK630-12+18-_

    Features

    1.All Cages, Pre-Spiraling Heads, Taping Head, Capstan & Takeup are separately driven.

    2.All bobbins can be loaded/unloaded simultaneously by automatic loading equipment, thereby reducing loading/unloading time to Max. 30 minutes.

    3.Lay is fed in MMI (Operator touch screen) instead of Gearbox. Any lay value in the range can be set & achieved that ensure easy operation.

    4.In Power failure situation, the machine comes to a controlled stop by emergency braking system, enabling the bobbin is held by spring pressure with a secondary positive lock. The release of bobbin is by externally plugged pneumatic compressed Air.

    5.Constant Bobbin back tension achieved by Electronic pneumatic valve & Single bobbin rotation is electronically sensed for maintaining consistent tension by positive motor control system or passive mechanical equipment.


    6.Multiple bobbin size available(400,500,630.etc)

    7.Mutiple host with mutiple cage number((6.12.18.24.30)) optional

    Product Photos


    Automatic Loading Equipment


    Application

    The aluminum machines is mainly used for non-back-twist stranding and compacting of round copper conductor and sector aluminum conductor; and also can be used for non-back-twist stranding of large section,long length copper-cored aluminum wires and aluminum alloy conductors.

    Component

    Central pay-off, host frame, die holder, impacting device, traction device, take-up and traversing device, etc.


    portable wire/cable take up machine
