    Semi Automatic Tubular Strander 0.2-0.85 Mm Wire Range Easy Installation

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : tubular closer
    Certification :
    Payment Terms : L/C, T/T
    Supply Ability : 120 Set/Year
    Delivery Time : 70-150 Days after receive deposit
    Price : Negotiate
    • Product Details
    • Company Profile

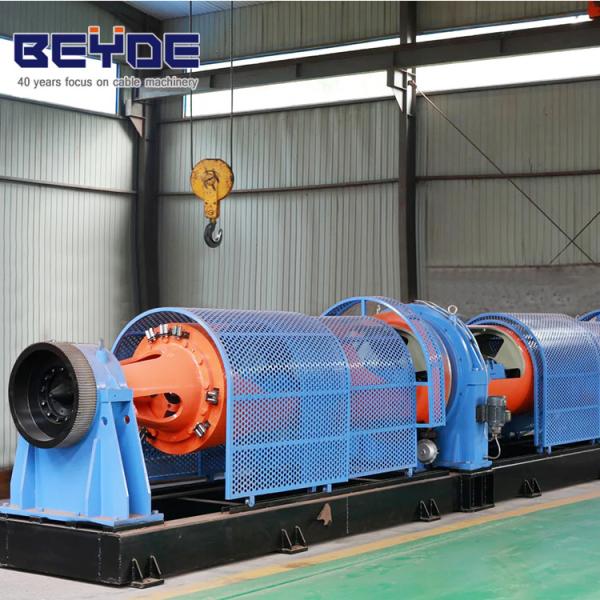

    Semi Automatic Tubular Strander 0.2-0.85 Mm Wire Range Easy Installation

    Tube 2018 12-bobbin Tubular Stranding Machine mechanical installation

    Basic Specification

    processing materialcopper/aluminum/steel
    Automatic GradeSemi-Automatic
    Wire Range0.2-0.85mm
    Power Voltage380V

    Detail Description

    500 Tubular Stranding Machine
    I. Main technical specification
    Single wire diameter(mm): Cu: 0.2-0.85, Steel: 0.5-0.8
    Stranding diameter(mm): 0.6-2.5/1.5-2.4
    Max. rotate speed of tubular barrel(r/min): 1600
    Traction wheel diameter (m/m): 318
    Wire outlet speed (m/min): 16.2-68.7 /7.3-68.7
    Stranded pitch (mm): 9.0-57.3 /6.05-57.3
    Main motor: Y132s-4B3 5.5kw 1400r/min
    Torque motor: YLJ2.5-6 2.5kg.m 0-950r/min
    Electricity hydraulic brake: YTI-25/4 60w 245N rated route:40mm
    Pay-off reel (D×d×L)(mm) 200×70×100(Ø 25.5)
    Take-up reel (D×d×L)(mm) 400×165×250(Ø 25.5)
    600×250×310(Ø40)
    Overall dimension (mm): 7000´950´920
    Total weight (kg): 2000

    II. Machine componenets
    The machine is comprised of pay-off stand, stranded wire tubular barrel, protective cover, die holder, traction wheel, take-up & traversing stand, electrical equipment etc.

    Tubular barrel is consist of 2 sections like seamless steel pipe or long barrel made by steel slab. It is in type of 3 doors, i.e. opening 18 rectangular holes on the round body of barrel, that’s easy for unloading reels. Meanwhile, 3 points are supporting on the tubular barrel, where conical roller bearing are mounted on the gearbox of headstock and double-row centripetal spherical bearing on the gearbox of tailstock; in the middle of the tubular barrel is adopted specialized riding wheel made by cloth laminated board to support the bearing, where inside are equipped with ball bearing, making rotate flexible and less abrasion on the barrel flange.

    To realize good connection between riding wheel and barrel flange, screw can be adjusted on the riding wheels.


    For further technical data, pls feel free to contact us.

    Additional Information

    Payment TermsL/C, T/T
    Minimum Order1SET
    Lead Time Delivery Time50 days
    Sample AvailableNo
    Delivery DetailsDelivery at workshop
    FOB PortTianjin
    Loading InfoBy sea
    Packing InfoLoading nude or in wooden case by container
    Target Market(s)Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
