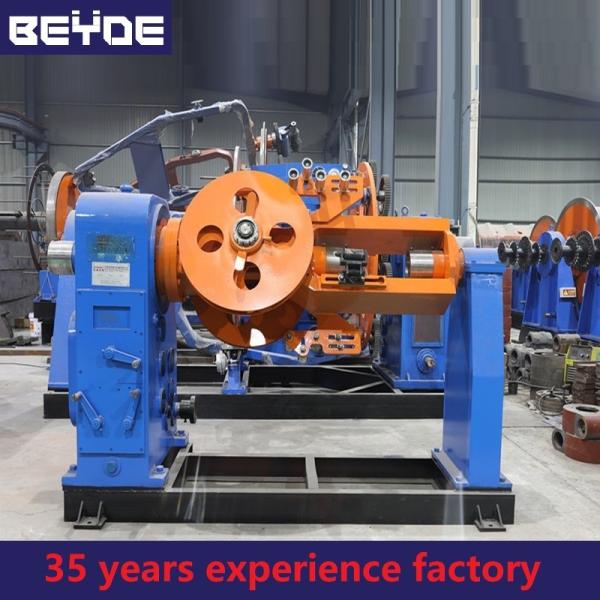

    Automatic Cable Stranding Machine Fork Type 40 M / Min Linear Speed

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : Side Loading Bobbin System
    Certification :
    Payment Terms : L/C, T/T
    Supply Ability : 120 Set/Year
    Delivery Time : 70-150 Days after receive deposit
    Price : Negotiate
    • Product Details
    • Company Profile

    Automatic Cable Stranding Machine Fork Type 40 M / Min Linear Speed

    Automatic Wire Cable Stranding Machine Fork Type


    1. Application


    This machine is used for stranding and compacting of copper, aluminum and aluminum alloy conductors of round and sector shapes. And it is used for stranding pre-spiral wires and milliken conductor. It is also used for steel wire armoring of power cable.


    2. Type


    - Transmission by separate motor / groud shaft.

    - Bobbin loading by intergral side-bottom loading / manual single loading

    - Assemble body structure / Welding body structure

    - Bobbin clamping by pneumatic / motorized


    3. Main Technical Specification


    TypeJLK-500
    (Ground shaft)
    (Welding structure)
    JLK-630
    (Separate motor)
    (Assemble structure)
    JLK-760
    (Separate motor)
    (Assemble structure)
    Single conductor dia.Cu1.5~5.0mm1.5~5.0mm1.5~5.0mm
    Al1.8~5.0mm1.8~5.0mm1.8~5.0mm
    Al alloy1.5~5.0mm1.5~5.0mm1.5~5.0mm
    Steel0.9~3.2mm0.9~3.2mm0.9~3.2mm
    Max. rotating speed6B190r/min230r/min210r/min
    12B190r/min210r/min190r/min
    18B170r/min190r/min170r/min
    24B150r/min170r/min150r/min
    30B130r/min150r/min130r/min
    Motor power6B132KW90KW90KW
    12B110KW110KW
    18B132KW132KW
    24B132KW132KW
    30B132KW132KW
    Max. working linear speed40m/min40m/min40m/min
    Pay off bobbin in cagePND500PND630PND760
