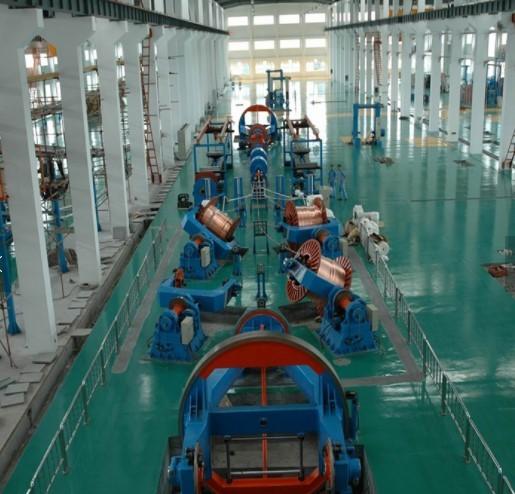

used for stranding 1+6 steel, compact, bare Al/Cu wire, aluminum alloy wire
Main Capability Characteristic
Technical Specification
Item | mm | 2000 | 2200 | 2500 | 3200 | 3600 | 4000 | 4200 | Notes |
Single Wire Diameter | mm | ≤30 | ≤40 | ≤50 | ≤60 | ≤60 | ≤65 | ≤65 | |
Splitting conductor section | mm2 | ≤2000 | ≤2500 | ≤2500 | ≤2800 | ≤2800 | |||
Max. Stranding Diameter | mm | 60 | 80 | 100 | 130 | 130 | 140 | 140 | |
Synchronous speed | r/min(MAX) | 60 | 60 | 50 | 35 | 35 | 25 | 25 | |
Liner speed | m/min(MAX) | 60 | 60 | 50 | 50 | 50 | 50 | 50 | |
Max. haul off force | kn | 30 | 30 | 50 | 80 | 80 | 80 | 80 | |
Max. pay off reel(central) | PN | PN2000 | PN2200 | PN2500 | PN3200 | PN3600 | PN4000 | PN4200 | |
Max. pay off reel(side) | PN | PN1600 | PN1600 | PN1600 | PN2000 | PN2000 | PN2200 | PN2200 | |
Take up reel | PN2000 | PN2200 | PN2500 | PN3200 | PN3600 | PN4000 | PN4200 | ||
Central height | Mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | |
Total power | Kw | 185KW | 185KW | 285KW | 385KW | 395KW | 420KW | 420KW | |
Total weight | Kg | 63000 | 73000 | 83000 | 125000 | 135000 | 145000 | 158000 | |
Reel outer width | Mm | 1500 | 1700 | 1900 | 2300 | 2300 | 2400 | 2400 | |
Loading capacity | Kg | 8000 | 10000 | 12000 | 15000 | 25000 | 30000 | 32000 | |
Max. speed | rpm | 60 | 60 | 50 | 35 | 35 | 25 | 25 | |
For laying up | For laying up, splitting conductor laying up |
Advantage:
1. Assembly structure of the twisting arms and pressure-bearing
plate: all the parts will be assembled together after all the
processing, which avoided the possible defects caused by the
processing after assembling. so a more accurate and reliable
operation. Higher speed, lower noise and more reliable quality
2. Touch panel with PLC and PROFIRBUS busbar, which realize a
well-organized on-and-off, operation and cyclical synchronization
of the different motors. DANFOSS converter controls all the AC
motors. Advance electrical control, easy operating, and reliable
operation
3. Converter control all the AC motors in the line: chief motor,
pay-off motors, take-up motors, traversing motors, driven motors,
taping motors and rotatory take-up. Stable function, less defects,
easy maintenance.
4. Pitch can be set, changed and displayed on touch panels, and
also the laying (to right or left),point moving and fast moving can
be set on touch panel
5. Tension control of the take-up can be set changed and displayed
on the touch panel.
6. THE PAY OFF IS Controlled by a separate motor which can realize
a synchronous rotation to the rotary take up. Protection devices
and auto-stop at defects; easy operation and reliable
![]() |
