PN1250 to PN3150 End Shaft Pay-off and Take-up Rack For Cable Manufacturing

1. PN3150 Take-up with traverse wire rack:

• This machine is used for cable extrusion and rotating machine to pull various cables.
• Applicable wire reel specification: PN1250 - PN3150
• Take-up speed: 170m/min max
• Max load capacity: 5 tons
• Traverse wire pitch: 10-30mm stepless and adjustable
• The winding motor adopts a 7.5kw AC motor, and the take-up tension is adjusted through inverter
• End shaft structure, electric clamping, electric lifting
• The speed of winding and winding driven by a separate motor
• With electric operating handle
• Installation without foundation
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V.

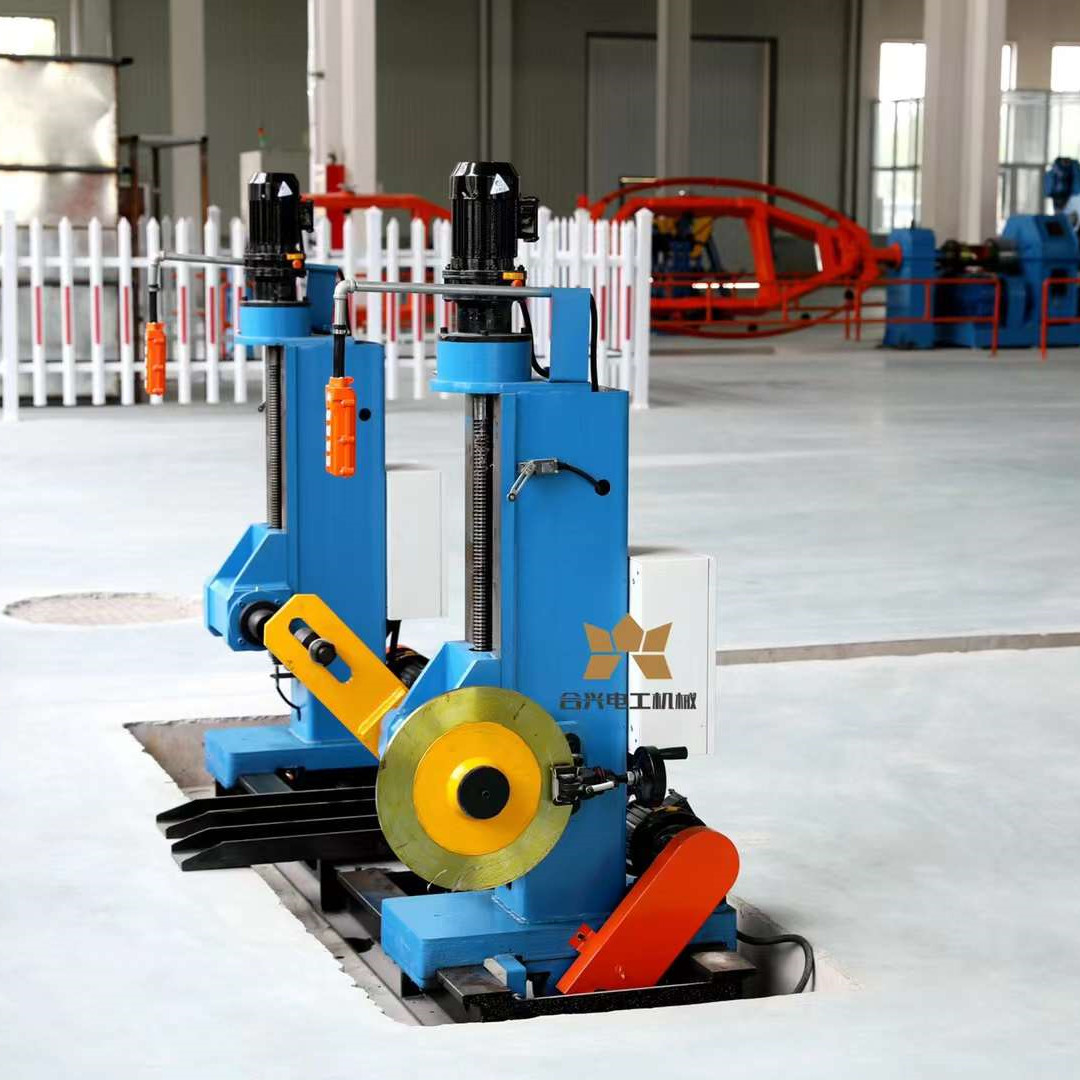

2. 1600mm Column type pay-off rack (end-shaft type)

• This machine is used for cable extrusion and rotating machine to pull various cables.
• Applicable wire reel specification: PN800 - PN1600
• Tension form: mechanical friction control
• End shaft pay-off type, electric lifting, screw clamping;
• Lifting and clamping device with limit safety protection function
• Installation without foundation
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V.

3. 2000mm Column take-up and traverse line rack(end-shaft type)

• Applicable wire reel specification: PN1000 - PN2000
• Max load capacity: 10 tons
• Traverse wire pitch: stepless and adjustable
• Max take-up speed: 65m/min
• The winding motor adopts a 5.5 AC motor, and the take-up tension is adjusted through a inverter.
• End shaft structure, electric clamping, electric lifting
• The speed of winding and winding driven by a separate motor
• With electric operating handle
• Installation without foundation
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V.

4. 2500mm Column take-up and traverse line rack(end-shaft type)

• Applicable wire reel specification: PN1250 - PN2500
• Max load capacity: 12 tons
• Traverse wire pitch: 10-60mm stepless and adjustable
• Max take-up speed: 45m/min

• The winding motor adopts a 5.5 AC motor, and the take-up tension is adjusted through a inverter.
• End shaft structure, electric clamping, electric lifting
• The speed of winding and winding driven by a separate motor
• With electric operating handle
• Installation without foundation
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V.

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management

of the company decided to repurchase a new piece of land of 10,000 square meters, and built the second processing plant in half a year. branch, and recruited 50

skilled workers, led by professional team personnel, and achieved good benefits, greatly relieving the pressure of production.

Beyde company is used for international advanced cable and wire processing equipment. In China, we are the only real manufacturers with independent processing and design capabilities.

The company produces 200-300 cable machines per year, especially pipe stranding machines, accounting for 60% of the Chinese market.
