Planetary Strander Cable Making Machine ACSR/AAC/ABC Conductor Stranding Machine

Planetary strander JLY630/6+12+18
(Separate motor driving, Hysteresis tension, Column type take-up)

1.Application:

• The equipment is mainly used for the laying of insulated core wires, such as copper, aluminum conductor, control cable, signal cable and small-size plastic cable, etc.
• The equipment adopt of PLC program control + touch screen + variable frequency speed regulation control + pneumatic control.
• The synchronization performance deviation does not exceed 3% in the states of start, normal operation, slow stop, emergency stop, etc., to ensure the stability of the twist pitch.
• Equipped with an automatic wire-breaking stop machine founction, it can stop and brake in time when the wire is broken or the wire is finished.
• The whole machine is operated and controlled by the HMI + color touch screen, and the electrical system is advanced.

2. Technical parameter

3.Main product picture:

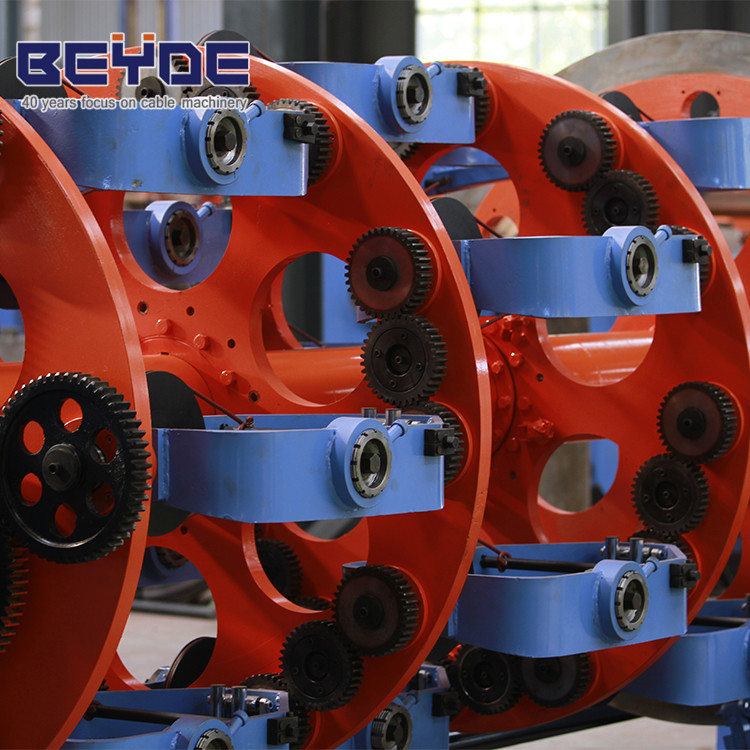

4. Main 6+12 Reels stranding cage feature:

• Drive form of each stranding cage: independent motors.
• Stranding cage motor power:
• 6 reels: 37KW (AC),
• 12 reels: 45KW (AC),
• Diameter of wire hole at the center of stranding cage: ≥Ø 60mm
• Pay-off tension form in the stranding cage: Hysteresis tension
• Max rotating speed: 70r/min
• Reel size in stranding cage: PND630
• Reel width in stranding cage: 475mm
• Broken wire stop machine system: DXJ fully automatic
• Stranding cage structure: 6 equally arranged cradles
• Driving operation mode: each cage is driven by its own motor, and the transmission device provides power for the operation and slow positioning of the equipment. The transmission device is driven by the geared motor through the belt drive reduction box. such as forward rotation, reverse rotation, neutral gear, start, stop, emergency stop, all controlled by the electrical system.
• The stranding cage structure: the cage is supported by the reduction box and the front stand. The main shaft is supported on the reduction box and the front support by two sets of double-row roller bearings. The front and rear support of the cage are respectively supported by double-row roller self-aligning bearings to ensure the bearing capacity of the axial movement of the cage. The cradle frame is arranged in 6 equal parts at each cage, 6-reel cradle, 12-reel (6+6) cradle, 18 reels (6+6+6) cradle.
• Running structure: the main shaft of the stranding cage is made of a whole thick-walled rube, and the through tube has no joints; each cage is connected to the main shaft through flange lock sleeve, and the cage is cut by Q235 whole board CNC cutting, The cradle frame is arranged in 6 equal parts; the axis line of the wire reel frame is parallel to the center line of the main shaft, and a planetary gear back-twist mechanism is installed behind the cage, and the back-twist of the wire reel frame is through the spline back-twist shaft and the back-twist gear connection to achieve 100% mechanical back-twist.
• Cradle frame: It is made of tailor-welded steel plates, using bending technology, less welding positions, large bearing capacity, and boring after overall annealing, durable and unchanged. Equipped a reel bracket to protect the wire.
• Loading reel method: manual clamping reel, equipped with mechanical locking, easy to load and unload the reel, the reel is loaded into the cradle with the help of the lifting device in the workshop.
• Pay-off tension in the stranding cage: The hysteresis tension is used to provide the pay-off tension. The tension can be adjusted online without stopping the machine. The constant tension output is controlled by PLC and operated through the HMI touch screen..
• Braking form: The main stranding cage brake adopts disc type air pressure brake, to reduce the impact of emergency stop inertia on the transmission parts. coordinated by the programmable controller PLC: the variable frequency motor controller, brake resistor, air pressure proportional valve, air pressure brake, etc. jointly complete the slow stop, fast stop, emergency stop and other operations of the whole machine .
• Wire break stop machine: the stranding cage is equipped with DXJ full-automatic break wire stop device, which can stop and alarm and brake in time when the wire is completed or broken, The electric slip ring at the back end of the cage supplies power to the cradle frame and communicates. slip ring in cradle to supply power and communicate for break wire stop system.
• The whole machine is operated through the color touch screen of the HMI, and is coordinated and managed by the programmable controller PLC
