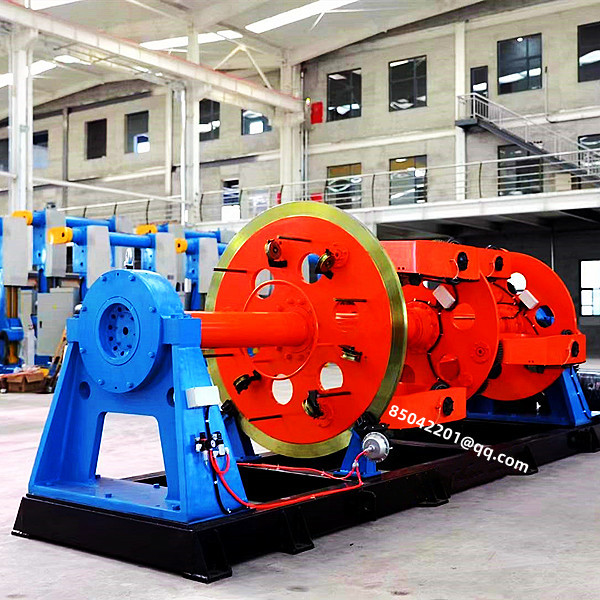

    Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 500/1+6+12
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors

    Planetary Stranders And Cablers Minimize The Twisting Of Bare Wire/Insulated Conductors


    1. Product Description
    Planetary stranding machine are designed in 2 versions: Light duty (L/D), for cabling insulated conductors with low bobbin weight and; heavy duty (H/D), for stranding bare wire with high bobbin weight.

    The cage of a planetary stranding machine can be set in one of 3 modes:

    • Pure Planetary
    • Variable backtwist
    • Rigid type

    Universal Planetary Cabler

    • Direction of wire travel: Left to right
    • Cage configuration: Single cage 6-12 positions
    • Reel size:
    • 6 positions (500 mm) flange diameter x (500 mm)overall width
    • 12 positions .
    • Fabricated rotor, with both ends supported on encircling bearings
    • Shaft type cradles, with rope brake tensioning mechanisms
    • Lay plate, closing die assembly
    • (400 mm) concentric taping head, AC motor, controls

    Main parameter of planetary strander

    Input wire diameterCopper Ø 1.5-Ø 5.0mm
    Aluminum Ø 1.8-Ø 5.0mm
    Insulated wire Ø2.0-Ø 8.0mm
    Max stranding ODØ20mm
    Max diameter of center hole in stranding cageØ30mm
    Max rotation speed90r/min
    Stranding pitch80-500mm (Electric control stepless adjustable, customized)
    Max line speed30m/min
    Rotation speed of taping machine700r/min
    Pitch of taping machine10-100mm (Electric control stepless adjustable, customized)
    6 Bobbins motor power37KW(AC)
    Capstan motor power37KW(AC)
    Taping machine motor power2.2AC)
    Take-up motor power4.0KW(AC)
    Pay-off bobbin size in stranding cageØ500mm
    Double capstan wheel diameterØ1200mm
    Central pay-off bobbin sizeØ500m- Ø630
    Take-up bobbin sizeØ800m- Ø1000m
    Machine center high1000mm
    Total power85kw

    Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated ConductorsPrecise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors


    Bearing brand(HRB.)
    Low voltage appliance brand(SCHNEIDER)
    Brand of pneumatic component(AIRTAC)
    Brand of main drive motor(SIEMENS)
    Take-up drive motor brand(SIEMENS)
    Frequency conversion controller(INOVANCE)
    PLC(SIEMENS S7-1200 smart)
    Touch screen(SIEMENS KTP1200)

    Precise Planetary Stranding Machine Twisting Of Bare Wire / Insulated Conductors

    5.Color:

    5.1 Rotating parts: RAL2004 outside orange

    5.2 Main body of the equipment: RAL5015

    5.3 Bottom frame parts: RAL9017 black

    5.4 Other parts: RAL5017 outer blue / RAL9010 white / RAL9017black

    5.5 Or customized
