    Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 400/1+6
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union
    Delivery Time : 90 days
    • Product Details
    • Company Profile

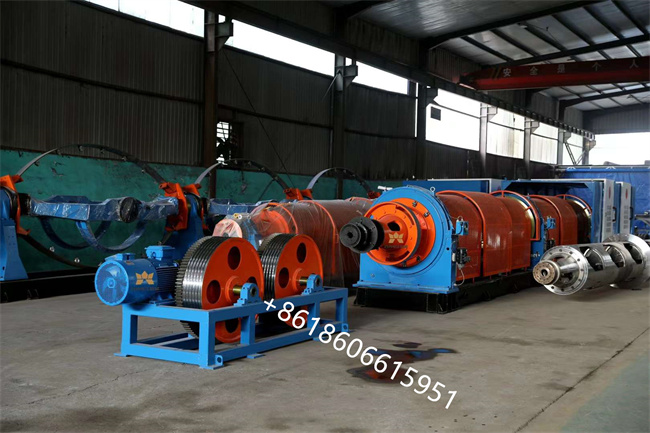

    Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative

    Latest JJG-400/1+6 Tubular Strander and Stranding Machine Quality Line

    Application: This machine is mainly used for the stranding of 7-Steel core aluminum stranded wire, aluminum and copper. also be used for stranding steel wire rope and insulated wire.

    Reel Size (mm)
    Max. Rotation Speed (rpm)
    Max.Rotation Speed Of Cage (with Stranding Bow)
    Single Wire Diameter
    (mm)
    6B
    12B
    18B
    24B
    36B
    Bow Cradle
    Max. Rotation Speed
    Aluminum
    Copper
    φ200
    1500
    1400
    1300
    1100
    900
    φ0.8~φ1.5
    φ0.6~φ1.5
    φ315
    1400
    1300
    1200
    1000
    800
    φ1.2~φ2.0
    φ1.0~φ2.0
    φ400
    1300
    1200
    1100
    900
    800
    φ800
    500
    φ1.5~φ3.0
    φ1.2~φ3.0
    φ500
    1100
    1000
    850
    750
    700
    φ1000
    400
    φ1.5~φ4.0
    φ1.5~φ4.0
    φ560
    900
    800
    700
    650
    600
    φ1250
    350
    φ1.5~φ5.0
    φ1.5~φ5.0
    φ630
    900
    800
    700
    650
    600
    φ1250
    350
    φ1.5~φ5.0
    φ1.5~φ5.0
    φ710
    600
    500
    450
    400
    350
    φ1600
    300
    φ1.5~φ6.6
    φ1.5~φ6.6
    φ760
    500
    450
    400
    350
    300
    φ1600
    300
    φ2.0~φ7.0
    φ2.0~φ7.0
    φ800
    450
    400
    350
    300
    220
    φ1600
    300
    φ2.0~φ7.0
    φ2.0~φ7.0

    Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative

    Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative

    Advanced JJG-400/1+6 Tubular Strander And Stranding Machine Line Innovative

    Input wire diameter
    Ø 1.05.0mm
    Max stranding OD
    Ø15mm
    Max rotation speed
    600r/min
    Strand pitch
    42-320mm
    Traction line speed
    25-191m/min
    Main motor power
    18.5KW(AC)
    Pay-off bobbin size in cage
    PN400
    Capstan wheel size
    Ø 800+ Ø 1000mm
    Central pay-off size
    PN400
    Take-up bobbin size
    PN800-PN1600
    Machine center high
    1000mm

    Q: Why do I choose your company?

    A: We have more than 40 years of professional experience in the production of cable machinery, providing high-quality,

    high-security products.

    We have an experienced team of skilled workers and engineers.

    We can support overseas training engineers.

    We can customize the design, to accept the customer's sample design.

    We can provide customers with after-sales service.

    Enable to give you a quotation for the cable stander, there is some necessary information that we need to know:

    1. Cable size structure, Cable diameter?

    2. How many kgs/meters to strand per hour?

    3. Reel/Flange Diameter, we need to quote correct take-up and pay off machine

    4. Bobbin drawing
