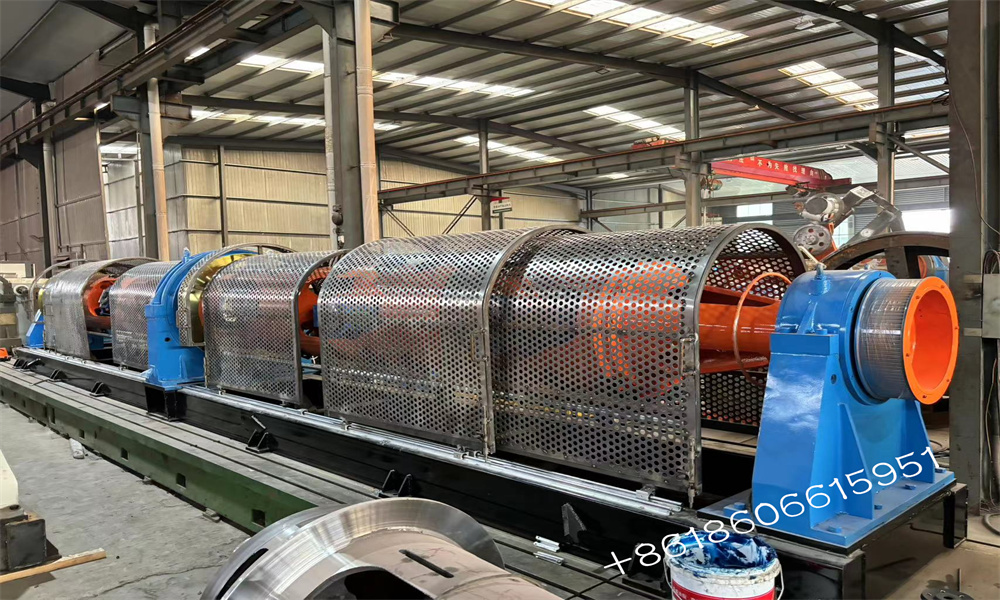

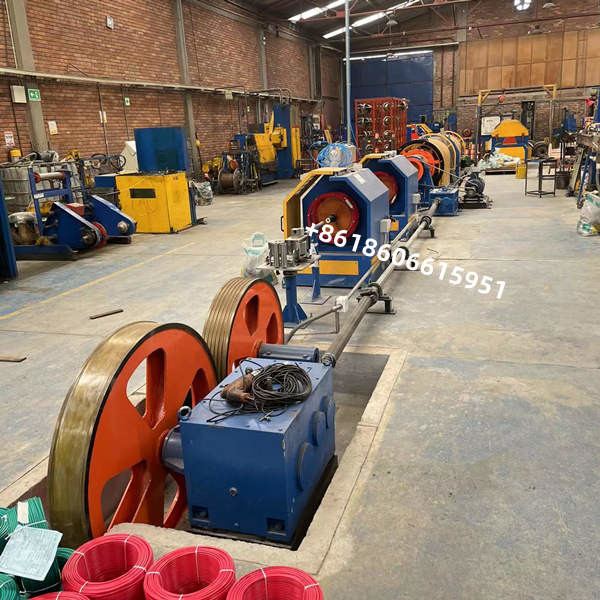

Automatic Making Electric Wire And Cable Stranding Machine Tubular Strander for Twisting Wires

1. Use
This machine is mainly used for the stranding of 7-core copper, aluminum and steel core aluminum strand wire. The appearance of the unit has been planned and designed by professionals, and the appearance is atmospheric and the high-speed operation is stable.
The actual production pitch can be obtained by independent motor drive. At the same time, this driving form can greatly reduce the mechanical transmission structure, thus reducing the maintenance link, effectively reducing the equipment running noise and the later maintenance link.

Electric control system

4.7.1 The unit adopts PLC for unified coordinated control operation. Touch screen man-machine interface operation is adopted. Corresponding convenient control buttons such as emergency stop and inching are set at the corresponding operating position of the unit.

4.7.2 The electrical cabinet shall be designed with good mechanical performance and dust-proof performance, and shall be equipped with proper ventilation openings. The electric power cabinet and control cabinet shall be set and installed separately.

4.7.3 The power supply is three wire five phase system: 380V (± 10%) 50HZ.

4.7.4 Total installed power: 85KW

4.7.5 The unit is equipped with corresponding number of emergency stop and inching buttons at each operation position for easy operation.

4.7.6 The electric control part consists of operation cabinet, touch screen, etc., and corresponding control buttons are set in each unit

4.7.7 The control cabinet shall be designed with good mechanical performance and dust-proof performance, and shall be equipped with proper ventilation openings.

4.7.8 Motor protection function: the electrical control circuit is designed with phase loss, overload and overheating protection functions to prevent motor damage

4.8 Main safety protection:

4.8.1 Host protective cover: manual push-pull cover

4.8.2 Main engine large bearing protection: high temperature alarm, Insufficient fuel supply alarm

4.8.3 Disconnection stop protection: touch type disconnection protection

4.8.4 Drive motor: phase loss protection, overload protection, Overheating protection

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management

of the company decided to repurchase a new piece of land of 10,000 square meters, and built the second processing plant in half a year. branch, and recruited 50

skilled workers, led by professional team personnel, and achieved good benefits, greatly relieving the pressure of production.

Beyde company is used for international advanced cable and wire processing equipment. In China, we are the only real manufacturers with independent processing and design capabilities.

The company produces 200-300 cable machines per year, especially pipe stranding machines, accounting for 60% of the Chinese market.
