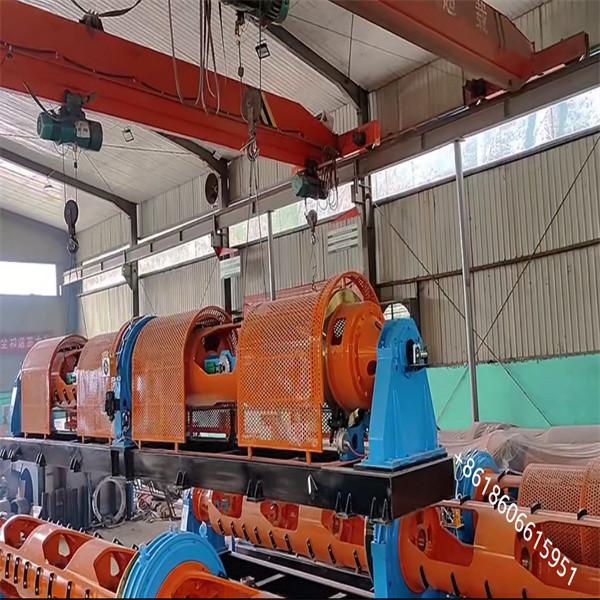

New Model 500 High Speed Tubular Stranding machine-JGG-500-1+6

Tubular Type Stranding Machine is suitable for high-speed stranded 7/12/19 round, compressed copper and aluminum conductor or steel wire with 100% back twist movement.

Rotating axis tube is supported by big bearings, it is suitable for high speed rotation.

The wire tension control is done through band type brakes.

Driven by independently motor.

The machine with MMI+PLC control system for pre-setting stranding pitch, wire tension control, automatic tension compensation control and for speed synchronization with the take up unit.

The electromagnetic tension is used for setting out, with the tension of 10kg. The machine is stopped in the cradle for adjustment and installed on the manual operation surface, which is convenient for micro adjustment and is not easy to fail.

loading method: end shaft structure, mechanical locking, safe and stable, not easy to be thrown out, convenient loading and unloading line plate, line plate is installed into cradle with the help of crown block in workshop.

Technical parameters:

Model	JLG 500	JLG 630
Single wire diameter	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm
Max finish wire diameter	Ø 21 mm	Ø 21 mm
Max rotation speed	500 rpm	500 rpm
Stranding pitch	40-448	40-448
Max line speed	150 m/min	150 m/min
Bobbin specification	PND500	PND630
Capstan wheel	1250 mm	1250 mm
Take-up bobbin	PN1600	PN1600
Height of center	850 mm	850 mm

Component:

Central pay-off, cage host, taping device(optional), capstan, take-up and traverse device and electric control system.

Main Character:

1.The machine can work steadily with the whole holder, and the protect cover adopts high grade seamless steel tube, so the structure is also steady with lower noises.

2.The timing power can be manipulated easily to adjust the speed .The protect cover has the right and reverse direction circumrotate.

3. The main machine and the haul-off unit adopt shift gears case, so the working intensity is lower and the pitch is exact.

4. Equipped with automatic parking equipment -the safeguard, it means the machine will stop when the thread runs out or the door is open.

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management

of the company decided to repurchase a new piece of land of 10,000 square meters, and built the second processing plant in half a year. branch, and recruited 50

skilled workers, led by professional team personnel, and achieved good benefits, greatly relieving the pressure of production.

Beyde company is used for international advanced cable and wire processing equipment. In China, we are the only real manufacturers with independent processing and design capabilities.

The company produces 200-300 cable machines per year, especially pipe stranding machines, accounting for 60% of the Chinese market.
