    Power Cable Stranding Machine Turnkey Project Laying up Armouring Wire Cable Making Machine Drum Twister

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 2500
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Power Cable Stranding Machine Turnkey Project Laying up Armouring Wire Cable Making Machine Drum Twister

    Power Cable Stranding Machine Turnkey Project Laying up Armouring Wire Cable Making Machine Drum Twister

    1. Application of the machine
    This machine is used for making big cross section and long length power cable with taping,steel tape armoring and steel wire armoring.

    2.Main technical parameter:

    2.1Max laying ODΦ25~Φ140mm
    2.2Laying pitch range200-5000mm
    2.3Full machine max rotation speed30r/min
    2.4Traction line speed33m/min
    2.5Max traction force5T
    2.6Non-metal taping head max rotation speed650r/min
    2.7Non-metal taping head pitch(stepless adjustable)20-208mm
    2.8Metal taping head max rotation speed550r/min
    2.9Metal taping head pitch (stepless adjustable)20-305mm
    2.10Pay-off bobbin sizePN1600~PN2000
    2.11Take-up bobbin sizePN2500~PN315
    2.12Filling rope from

    external diameter × aperture × width
    F500 × F40 × 400mm (10 balls)

    Disc diameter × aperture × Outer gear
    F800 × F52 × 500mm (4 balls)

    2.132500 Pay-off rotation Motor power22KW(AC variable frequency motor)
    2.142000 Pay-off rotation Motor power4x18.5 KW(AC variable frequency motor)
    2.15Non-metal taping head Motor power11KW(AC variable frequency motor)
    2.16Steel tape armouring motor power22KW(AC variable frequency motor)
    2.17caterpillar motor power2x22KW(AC variable frequency motor)
    2.18Cage rotation motor power55KW(AC variable frequency motor)
    2.19Machine center high1000mm


    3.Main Component

    3.02000 rotation pay-off frame4 set
    3.12500 rotation pay-off frame1 set
    3.2# type through wire frame5 set
    3.3Guide roller rack1 set
    3.4Filling rope rack2 set
    3.5Three row assembling die holder1 set

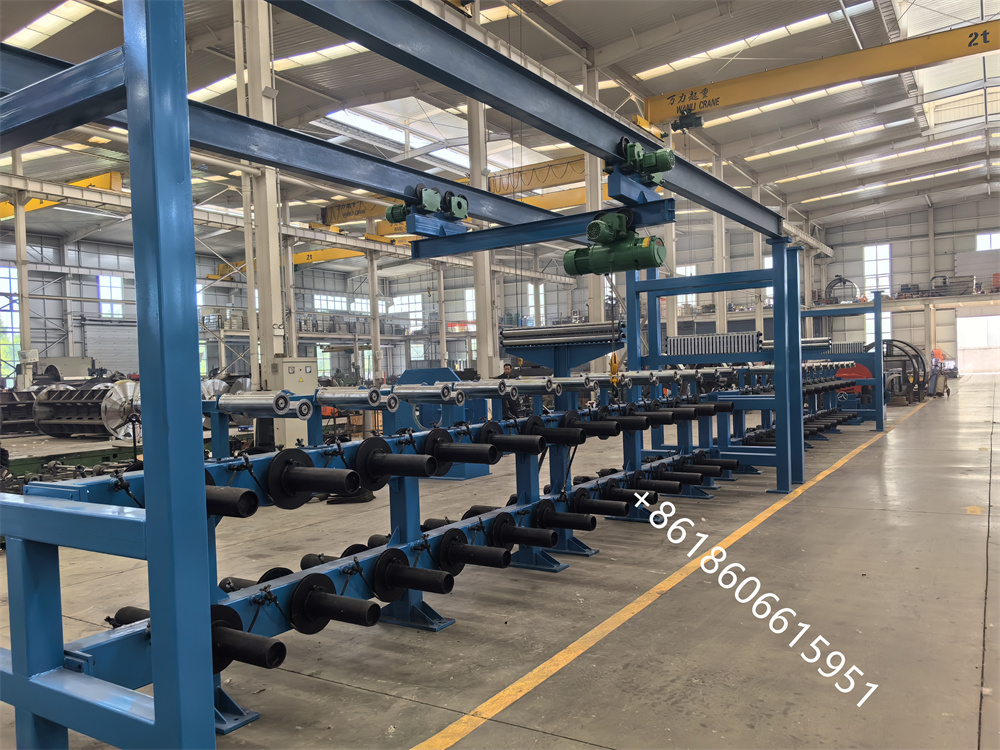

    3.648+48 head steel wire pay-off rack2 set
    3.7Steel wire armouring head1 set
    3.8Φ600 double reel taping machine1 set
    3.9Φ800 steel tape taping machine1 set
    3.105T Rotation pneumatic Caterpillar1 set
    3.113150 Drum type take-up and arrange line rack1 set (Hydraulic loading bobbin system)
    3.12Pneumatic Hydraulic system1 set
    3.13Safety fence1 set
    3.14Electrical control system1 set


    Technical

    JPC2500

    JPC3150
    Single wire diameterΦ12.0-Φ55.0mmΦ15.0-Φ65.0mm
    Max stranded diameterΦ130mmΦ150mm
    RPM13-44r/min9-31r/min
    Stranding pitch200-5600mm291-7858mm
    Line speed12-50m/min9-72m/min
    Pay off drum size in cagePN1600mmPN2000mm
    Central pay off drum sizePN2500mmPN3150mm
    Take up drum sizePN2500mmPN3150mm



    5. Main features
    5.1. The machine adopts touch screen and programmable controller to uniformly command and manage the startup, operation and synchronous rotation of motors in each part of the whole machine.
    5.2 AC variable frequency motor shall be adopted for paying off motor, winch rotating motor, winding motor, traction motor and winding and laying motor.
    5.3. The cable pitch can be set, modified and displayed on the touch screen. The left and right cable arrangement, inching and rapid movement adjustment can be set on the touch screen.
    5.4. The pay off frame of the machine adopts a separate motor, which is convenient for installation, operation and maintenance. It can rotate synchronously with the rotating take-up frame, or it can jog alone.







    Main components
    1.1250/1+6-bobbin twister

    2.Wire-stranded die holder
    3.Φ600 Non-metallic wrapping device
    4.Meter counting
    5.1600 Two wheeled device with single-power
    6.2600Portal pay-off and take-up stand
    7.Electric control system

    Advantage
    1.Mechanical friction control for wire tension, adjustable in size
    2.The material of the bow plate is stainless steel, and all wire turns are made of wire wheels, which will not damage the surface of the cable
    3.Fully enclosed protective cover, axial push pull structure, safety travel switch protection, with interlocking function with the host
    4.Best after-sales service.Will give our service within 2 days.
    5.Will give you professional instruction to how to manage these machines.
    6.Good quality for testing.
    7.Can strand cable very fast.Cage speed can be 50r/min.
