    JLY300/72 Easy Operation Cable Armouring Machine Steel Wire Stranding Machine

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 300/72
    Payment Terms : L/C, D/A, D/P, Western Union, T/T
    Delivery Time : 90 days
    • Product Details
    • Company Profile

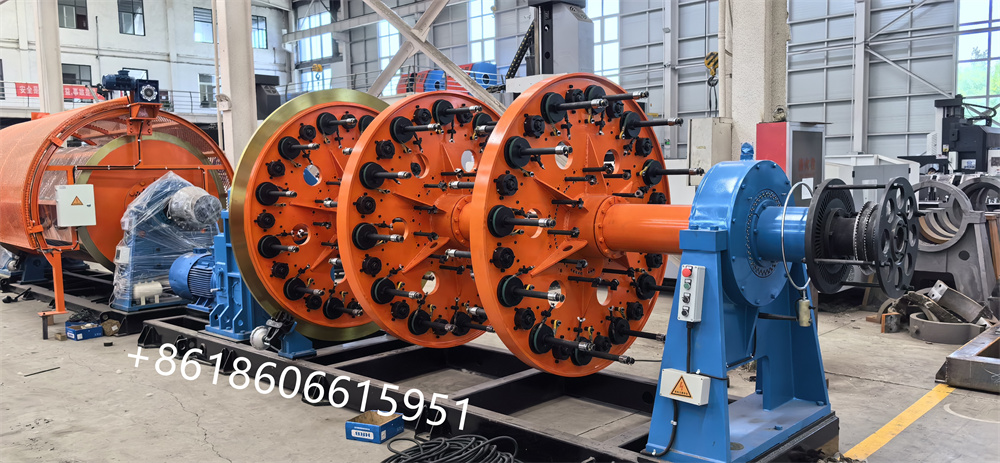

    JLY300/72 Easy Operation Cable Armouring Machine Steel Wire Stranding Machine

    JLY300/72 Easy Operation Cable Armouring Machine Steel Wire Stranding Machine


    1.Application:

    This machine is mainly used to copper wire shielding and steel wire armouring.


    2.Overview of equipment composition
    The equipment is composed of PLC program control+touch screen+variable frequency speed control+pneumatic control. The synchronous performance deviation of the equipment from startup, normal operation, slow shutdown, emergency stop and other states shall not exceed 3% to ensure stable stranding. The electric control system is advanced, easy to operate and reliable.


    3. Specification:

    Input wire diameterØ 0.3-4.0mm
    Max stranding ODØ75mm
    Max rotation speed of cage350r/min
    Stranding cage motor power55KW(AC)
    Stranding pitch(set one PLC)500-1500mm (Stepless adjustable)
    Linear speed61m/min max
    Haul-off motor power37KW(AC)
    Rotation speed of 500x3 Tangent type taping machine650r/min
    Motor power of 500x3 Tangent type taping machine7.5KW(SERVO)
    Pitch of 500x3 Tangent type taping machine0-200mm (Stepless adjustable)
    Rotation speed of 600 concentric type taping machine750r/min
    Motor power of 600 concentric type taping machine7.5KW(SERVO)
    Pitch of 600 concentric type taping machine0-200mm (Stepless adjustable)
    Pay-off bobbin size in cagePND300
    Main Caterpillar Max pulling force3200kg
    Central pay-off bobbin sizePN1600-PN3150
    Take-up bobbin sizePN1600-PN3150
    Machine center high

    1000mm


    4. Main Components:

    Ø3150mm Portal type Pay-off
    Well type guide wire rack
    Ø500x3 head tangent type taping machine
    72 bobbins strand cage
    72 bobbin Concentrated loading bobbin device
    120 head Pre-forming head
    Close wire die holder and compacted head
    Ø600 concentric type taping machine
    Ø500x3 head tangent type taping machine
    Mechanic&Electronic Meter counter
    3200kg Main Pneumatic caterpillar
    Ø 3150mm portal type take-up with traverse wire
    Electric control cabinet
    Safety protection fence and cover

    Our Advantage:


    1. BEYDE Copper wire Screening machine, one stranding cage can load many bobbins2. Wire Pay-off bobbin available from Ф200-Ф500.
    3. The stranding cage and the taping heads are driven by individual motor, stepless adjustable pitch.
    4. The center main shaft is a thick-walled whole length of seamless steel tube, not welded.
    5. Stranding cage has Front and back dual supporter, stranding capstan is made of thick steel plate.
    6. Three bearings supported to improve the rotating speed.
    7. Equipped with Wire-break detection device to stop the machine once any wire breaks.
    8.PLC + HMl electrical control system.
    Note: Custom desian or configurations are available upon request.
