    JLY1250/8 Planetary Strander And Laying Up Lines For High Strength Steel Ropes

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 800
    Certification :
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 120 Set/Year
    Delivery Time : 70-150 Days after receive deposit
    • Product Details
    • Company Profile

    JLY1250/8 Planetary Strander And Laying Up Lines For High Strength Steel Ropes

    JLY1250/8 Planetary Stranders And Laying-Up Lines For High Strength Steel Ropes

    JLY1250/8 Planetary Strander And Laying Up Lines For High Strength Steel Ropes

    No.Main itemsMain items contentsRemark
    Main parts of machine

    1

    Type

    Planetary: (6+6+6)/1000

    2

    Application

    For manufacture of locked coil steel wire rope

    3

    Rotating speed

    Max 60rpm

    4

    Line speed

    Max 40 m/min

    Different rope, different speed

    5

    Pay-off reel

    1000

    Please inform the bore size, etc.

    6

    Bobbin

    Flange dia. 1000

    Please confirm the bobbin structure inform

    7

    Take-up reel

    Flange dia. 2600X max net width 2200

    Please inform the bore size, etc.

    8

    Max. weight of full take-up reel

    15 tons

    8

    Lay length range

    100-700mm

    Stepless lay length

    9

    Inlet wire dia.

    Max 6mm, threading ferrule with carbide die, threading corner with guide wheel

    10

    Outlet rope dia.

    Max 70mm

    11

    Cradle back-twist

    80%-120%, 0, 100%(cradle does not rotate), stepless adjustment

    You can make 18 cradles do not rotate while the other 18 cradles rotate by 80%-120%

    0 is used when laying special locked coil steel wire

    12

    Operation height

    1000mm

    Or as user’ s request

    13

    Operation direction

    Right – hand, when look ahead from pay-off to take-up, operation at right side.

    If you want left-hand, please inform

    14

    Machine electrical-control type

    Frequency-control, cage motor power is 110KW, capstan motor power is 110KW

    15

    Noise

    Noise≤ 82db when it is 1m away from machine

    16

    Machine size

    Length50XWidth6.5
    Item Details

    1

    Pay-off

    Pay-off moves left-right with electrical-control. Max damping force is 5000N, max capacity is 30 tons.

    Downward pay off

    2

    Cage

    Supported by under rollers

    3

    Cradle

    Pintle type bobbin. Mechanical damping

    4

    Cage brake

    Pneumatic brake on cage.

    Nomal brake time is 8-12s.

    Emergency brake time is 6-8s

    5

    Main speed reducer

    Precision of inside gears is of grade 7, surface of teeth HRC43-48.

    Lubrication-control is combined with cage.

    Bearing is equipped with temperature sensor.

    6

    Closing die

    Laying of round steel wire: electrical-control hydraulic pressure. It automatically opens when take-up trouble, drive trouble or electricity is cut off suddenly.

    Laying of special steel wire: 1 set of rotating die holder special for locked coil wire rope is provided.

    Please inform Inlet size of closing die

    7

    Lubrication unit

    Lubrication at converging inlet

    8

    Post-former

    1 set is provided as user’ s requirement

    9

    Meter-counter

    Touch-type electrc

    l meter-counter, precision is not influenced by rope size.

    A spare mechanical

    meter-counter is provided

    10

    Capstan

    With double-active and cantilevered. 7+8 grooves with R38mm. capstan nominal dia. is 3000mm. Max pull force is 15N

    11

    Rope pressure unit

    It is equipped at the outlet of capstan to ensue wires not loosened when machine stops.

    12

    Take-up & traverse

    Traverse moves left-right with electrical-control. Max capacity is 40 tons

    Downward

    JLY1250/8 Planetary Strander And Laying Up Lines For High Strength Steel RopesJLY1250/8 Planetary Strander And Laying Up Lines For High Strength Steel Ropes



    If you want to know more about our products,please click here to contact us.
    Company Information

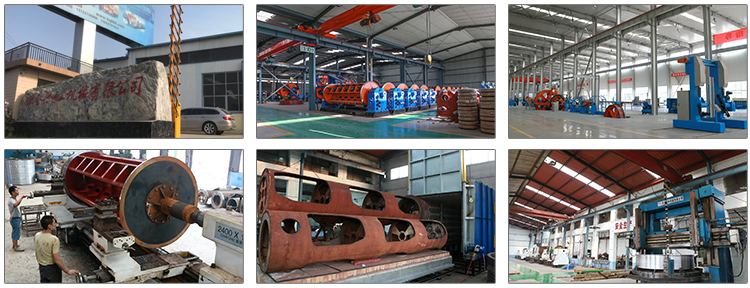

    BEYDE is a subsidiary of Hebei HEXING electrical machinery Co., Ltd., a professional manufacturer and exporter of cable equipment. Founded in 1983 by Mr. Chen Yuke, grandfather of current president Mr. Chen Jiuzhang, HEXING has a well-equipped factory with an area of 10,000 square meters located in Hejian, Hebei province, home to the manufacture of cable machinery and equipment. HEXING is a well-known brand in China's cable industry, serving over 70% cable manufacturers in northern China. BEYDE supplies all types of machines including Laying-up machine, Rigid Stranding Machine, Tubular Stranding Machine, Planetary Stranding Machine and help wire & cable manufacturers lower production cost and ensure quality of final products. Beyde was established for export business of HEXING as a result of increasing OEM business of HEXING for many Chinese exporters. With mature technological expertise, BEYDE provides cost-effective solutions for wire & cable manufacturers to expand or update their production lines. Our machines have been exported to the United States, Russia, Malaysia, Saudi Arabia, Iran and other countries. The quality and performance of our products has been widely recognized and praised by overseas customers. We can customize the capacity, color of our machines according to the demands of clients. We look forward to working with more overseas cable manufacturers to have mutually beneficial cooperation and create success and glory together!




    Certifications


    Our products passed ISO 9001 international quality system certification with domestic first-class product quality testing center.


    FAQ

    FAQ

    1,Q: What is your main brand for the electrical and mechanical parts?

    A: China famous brand

    2, Q:could we appoint the parts brand?

    A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.

    3, Q: could you please arrange the installation and commissioning ?

    A: Yes , we could and the buyer pay the charge

    4, Q: could you arrange the production education?

    A: Yes , we could and the buyer pay the charge

    5, Q: could you do the design for the whole plant

    A: Yes , we can.

    6, Q: could you offer the production process design

    A: Yes , we can.

    7, Q: what is the difference with other supplier?

    A: what we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

    8.Q:What's the payment terms?

    A:T/T,30% deposit and 70% balance before delivery.

    9, Q:How long the guarantee:

    A: one year and charge for repair the whole life.
