    Cable Making Bobbin Planetary Stranding Machine Disc Type Wire Rope Twisting

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 630 1+6
    Certification :
    Payment Terms : L/C, D/A, D/P, Western Union, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

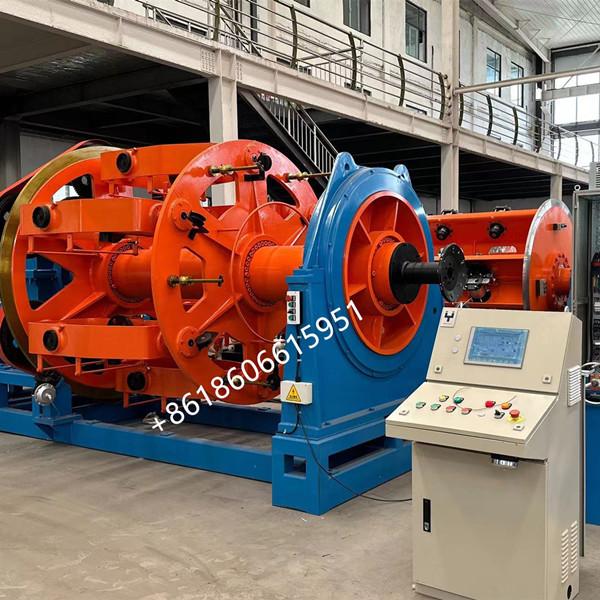

    Cable Making Bobbin Planetary Stranding Machine Disc Type Wire Rope Twisting

    Cable Making Machine Bobbin Planetary Strander Planetary Disc Type Wire Rope Twisting Stranding Machine


    Planetary Strander
    Application
    The planetary strander is used for aluminum copper wires, aluminum conductor steel reinforced, insulated wires, as well as optical fiber composite overhead ground wires abbreviated as OPGW
    Features
    1 Back-twist and Non-back-twist can be switched.2. The planetary stranding machine can be used for synchronous multiple-core stranding
    Product Advantages
    1. Numerous Sizes
    Inquiry Form
    Bobbin of this cable making equipment can be made with diameter ranging 250mm to 800mm. 6 to 48 pieces of bobbins are set for each single cage. The bobbins area ranged in 3,4. 5, or 6 equations.
    2. Various Tension Modes
    This planetary strander is available with a variety of tension modes, for instance, magnetic tension.
    mechanical tension, mechanical with feedback tension, pneumatic tension, etc.
    Improvement
    1. A timing belt back-twist system is developed, for which the whole wire stranding equipment is greatly decreased in noise generation. In addition, the cable won't be contaminated by the gear grease2. The advanced key groove machining tools are used for discs installation. They can guarantee that bobbin loader holes on two ends are concentric after assembly.3. We have increased the holes for measuring center height on disc. With those holes. the client can conveniently check the riding wheels at any time, and adjust the wheels for avoiding the axle fatigue fracture.
    4. Cradle clamping device is optimized, which avoids using massive screws and guarantees no screw falling during running.


    Technical sheet:

    Model (Planetary Stranding Machine)JLY-315JLY-400JLY-500JLY-630
    Diameter of single wireCopperφ1-1.6 mmφ1-4 mmφ1.2-5 mmφ1.5-5 mm
    Aluminumφ1.2-2 mmφ1.2-4 mmφ1.4-5 mmφ2.0-5 mm
    Maximum stranded conductor ODφ14 mmφ28 mmφ35 mmφ45 mm
    Stranding Pitch6 Bobbin Stranding Cage26-43539-69544-77048-840
    12 Bobbin Stranding Cage30-52643-77447-85850-928
    18 Bobbin Stranding Cage34-63947-85855-100165-1201
    24 Bobbin Stranding Cage38-74951-94063-115175-1601
    Rotating Speed6 Bobbin Stranding Cage218 r/min120 r/min106 r/min55 r/min
    12 Bobbin Stranding Cage118 r/min110 r/min97.5 r/min45 r/min
    18 Bobbin Stranding Cage108 r/min100 r/min82.9 r/min35 r/min
    24 Bobbin Stranding Cage98 r/min90 r/min74 r/min25 r/min
    CapstanCapstan Wheel Diameter1000 mm1600 mm1800 mm2000 mm
    Maximum Haul-off Force2T5T10T15T
    Motor Power18.5 KW22 KW37 KW55 KW
    Bobbin Size315 mm400 mm500 mm630 mm
    Center Payoff Bobbin315 mm1250 mm1600 mm1600 mm
    Take-up Bobbin1250 mm2000 mm2000 mm2500 mm
    Maximum Haul-off Linear Speed25 m/min30 m/min34.7 m/min20 m/min
    Central Height1000 mm1000 mm1000 mm

    1100 mm


    Commercial Terms

    Payment terms:EXW/FOB/CIF
    Payment terms:Telegraphic Transfer. 30% deposit after PO confirmed, 70% Balance paid before delivery
    Delivery:90 days after deposit
    Package:covered with air bubble film, fixed by steel wire in container.
    Warranty period:12 Months after B/L date. Any failure occurred within the period due to our responsibility, we’ll supply you the spare parts for free, and permanent technical support & consultation all lifelong for the machines

    After-sales Service
    ● Our engineer will go to customer site for debug and installation when the machine reaches his factory. Customer has to arrange engineer return ticket, food & hotel at destination, and pay 200usd per day to our engineer when the installation work get done.

    ● We provide lifetime technical support, and our engineer is available to visit customer’s site in certain time.
