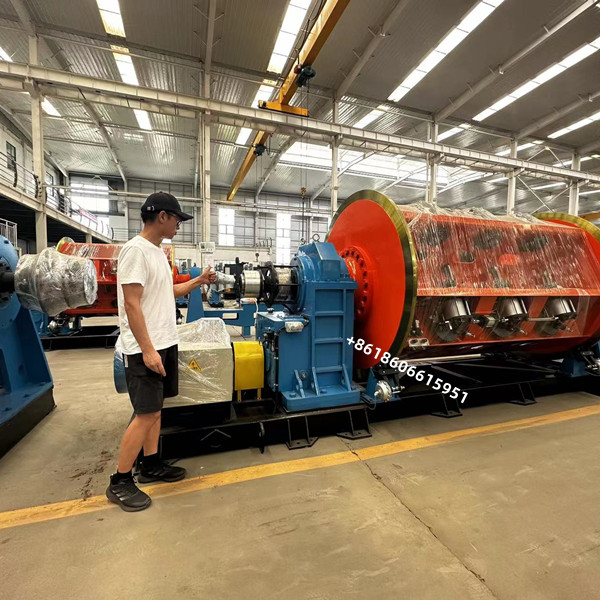

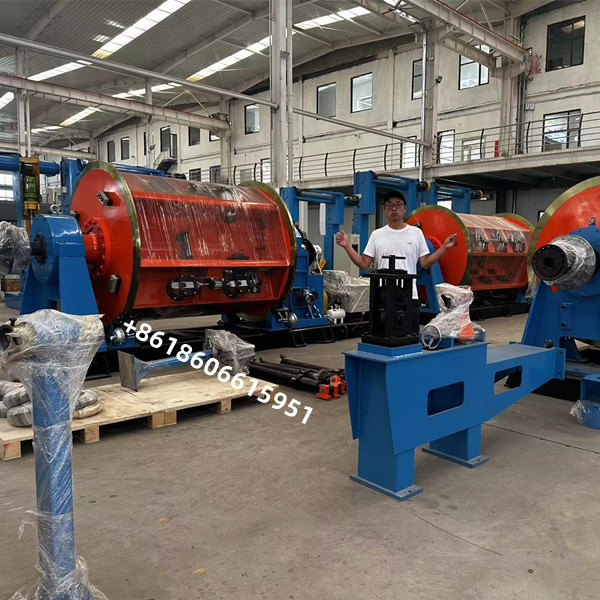

JLK-500/12+18+24 Rigid Frame Strander Line With Contant Tension Control System

Product Description:

The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors. Rigid stranding lines are ideal machine for making conductors of large size for LV/MV/HV power cables and over head conductors (AAC/AAAC/ACSR). Prepared for Bobbin Dia. 630mm to 710mm with automatic side or floor loading system at 45°as well as special systems adapted to customer need. Confuguration from 19 to 127 wire.

Features:

• Product Name: Rigid Frame Stranding Machine
• Color: Customized
• Warranty: 12 Months
• Stranding Pitch: stepless adjust on PLC
• Wire Twisting Machine: Yes
• Cable Rotation Machine: Yes

Contant tension control system and intelligent brake system:

By Tracking(Supersonic) the length of wire wrapped on bobbin, the length of wire remaining on bobbin will be detected and transmitted to PLC. The PLC will control the in-taking air by proportional valve and make the tension of wie constant following the length of wire remaining. Two groups controlling the tension of brake dics for paying-off to ensure the pressure on dics equal. Pneumatic brake system is controlled by intelligent brake system. When energency stop of machine, the speed signal of each cage will be trasmitted to PLC by sendsor. PLC will make calculation automatically and provide different brake force to each cage by proportional valve accordingly. Then the different cage will stop synchronized

Technical Parameters:

Customization:

Brand Name: BEYDE

Model Number: JLK630

Place of Origin: China

Certification: ISO,CE

Minimum Order Quantity: 1

Packaging Details: Container safety packing

Delivery Time: 90 days

Payment Terms: 30% Down pay, 70% before delivery

Supply Ability: 200 set/year

Stranding Pitch: 10-60mm

Power Source: Electric

Voltage: 220V/380V

Weight: 1000KG

Product Name: Cable Stranding Machine

Keywords: cable rotation machine, cable making machine, wire twisting machine

Support and Services:

We provide comprehensive technical support and service for our Cable Stranding Machines. Our team of experienced engineers and technicians are available to provide technical assistance, troubleshooting, and repair services for any of our machines.

We provide our customers with a range of services, including:

• Regular maintenance
• Troubleshooting and repair services
• Technical support and advice
• Installation and setup
• Application engineering

Our team is dedicated to providing the highest quality service and support for our products. We are committed to providing our customers with reliable, timely, and cost-effective solutions for all their needs.

Packing and Shipping:

Cable Stranding Machine is shipped as a single unit, with its parts and components securely packaged and strapped together in either a cardboard box or wooden crate. The product is then placed onto a pallet, wrapped with protective materials, and strapped securely for shipping.

To ensure safe delivery, the entire package is secured with shrink wrap, bubble wrap, and/or foam. Additionally, we use an eco-friendly packing material, such as biodegradable packing peanuts, to fill any voids inside the package.

We also offer customized packaging and shipping services, such as a double-boxing option. Please contact us for more information.

FAQ:

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management

of the company decided to repurchase a new piece of land of 10,000 square meters, and built the second processing plant in half a year. branch, and recruited 50

skilled workers, led by professional team personnel, and achieved good benefits, greatly relieving the pressure of production.

Beyde company is used for international advanced cable and wire processing equipment. In China, we are the only real manufacturers with independent processing and design capabilities.

The company produces 200-300 cable machines per year, especially pipe stranding machines, accounting for 60% of the Chinese market.
