    Custom Tubular Stranding Machine Steel Electric Wire Cable Making

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 630/1+6
    Certification :
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 120 Set/Year
    Delivery Time : 70-150 Days after receive deposit
    • Product Details
    • Company Profile

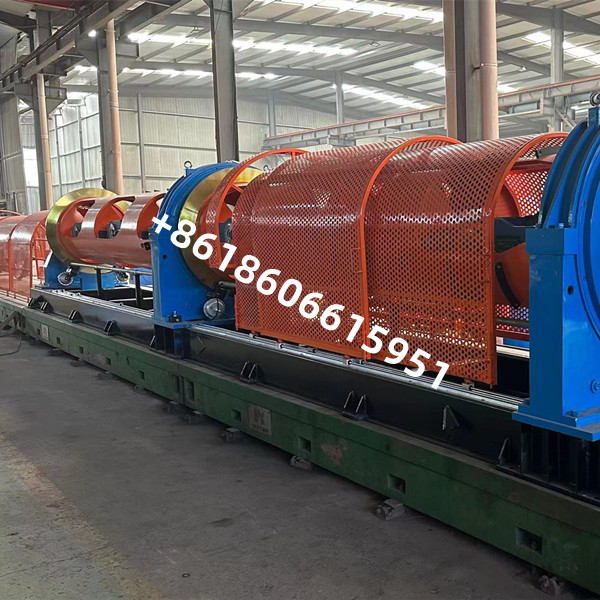

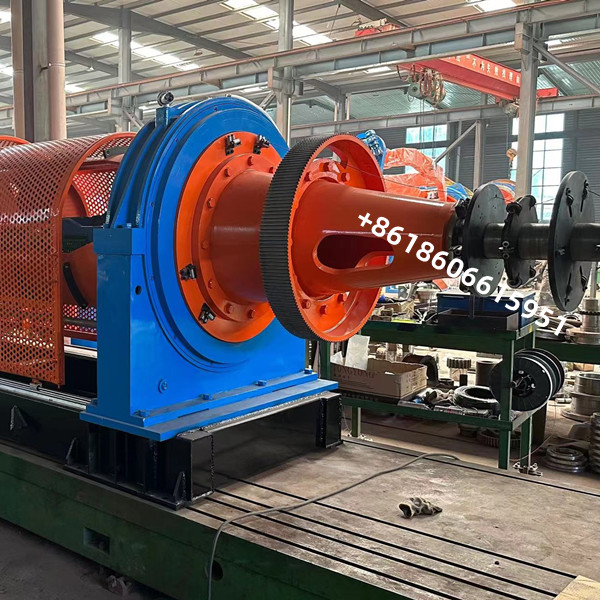

    Custom Tubular Stranding Machine Steel Electric Wire Cable Making

    Low price steel electric wire cable making tubular stranding machine


    1. Description

    This tubular stranders line is used for stranding Steel , AL and CU wire ,as well as cabling the control cables.


    2. Characteristic

    2.1 This tubular stranding body is a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.

    2.2 Bobbin is clamped by disc springs and released by pneumatic control device.

    2.3 Wire break and wire emergent stops provided for all the line

    2. 4 The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable.


    3. Main Specification


    Reel sizeMax. rotation speed (rpm)Wire dia.
    6B12B18B24BAL(mm)CU(mm)Steel(mm)
    200(mm)12009001.0~2.50.2~1.50.2~0.8
    315(mm)9008001.0~2.50.5~1.80.3~1.0
    400(mm)9008005501.0~2.51.4~4.00.6~3.0
    500(mm)8006004503501.3~5.01.8~5.01.3~3.5
    560(mm)7005004003001.3~5.01.8~5.01.3~3.5
    630(mm)7005003302601.3~5.02.0~6.01.3~3.5
    710(mm)4003001.3~5.02.0~6.01.3~3.5
    760(mm)3501.3~5.02.0~6.01.3~3.5


    Custom Tubular Stranding Machine Steel Electric Wire Cable MakingCustom Tubular Stranding Machine Steel Electric Wire Cable MakingCustom Tubular Stranding Machine Steel Electric Wire Cable MakingCustom Tubular Stranding Machine Steel Electric Wire Cable Making


    Customization:

    Customized Cable Stranding Machine by BEYDE

    Brand Name: BEYDE

    Model Number: JLK630

    Place of Origin: China

    Certification: ISO,CE

    Minimum Order Quantity: 1

    Packaging Details: Container safety packing

    Delivery Time: 90 days

    Payment Terms: 30% Down pay, 70% before delivery

    Supply Ability: 200 set/year

    Stranding Pitch: stepless adjust

    Power Source: Electric

    Voltage: 220V/380V

    Product Name: Tube Stranding Machine

    Keywords: cable rotation machine, cable making machine, wire twisting machine


    Support and Services:

    Technical Support and Service for Cable Stranding Machine

    We provide comprehensive technical support and service for our Cable Stranding Machines. Our team of experienced engineers and technicians are available to provide technical assistance, troubleshooting, and repair services for any of our machines.

    We provide our customers with a range of services, including:

    • Regular maintenance
    • Troubleshooting and repair services
    • Technical support and advice
    • Installation and setup
    • Application engineering

    Our team is dedicated to providing the highest quality service and support for our products. We are committed to providing our customers with reliable, timely, and cost-effective solutions for all their needs.

    Packing and Shipping:

    Packaging and Shipping

    Cable Stranding Machine is shipped as a single unit, with its parts and components securely packaged and strapped together in either a cardboard box or wooden crate. The product is then placed onto a pallet, wrapped with protective materials, and strapped securely for shipping.

    To ensure safe delivery, the entire package is secured with shrink wrap, bubble wrap, and/or foam. Additionally, we use an eco-friendly packing material, such as biodegradable packing peanuts, to fill any voids inside the package.

    We also offer customized packaging and shipping services, such as a double-boxing option. Please contact us for more information.
