JLK-500/61 Rigid Wire Stranding Machine With Automatic Loading Bobbin System

1.Application:
The rigid strander is the machine par excellence for manufacturing power conductors. It is the strander that combines quality, productivity and flexibility compared to other stranding methods. We have developed a wide range of ancillary equipment such as semi-automatic loading systems, compacting heads, pre-formers, post-forming heads, capstans, take-ups that enables us to offer a complete catalogue of solutions for:

Stranding of soft Cu and AAC bare round conductors, either straight, pre-spiralled sectoral or Milliken segments.
Stranding of aerial bare conductors in various constructions: AACC, ACSR and other similar designs, with round or trapezoidal wires.
Multi-wire screening of medium and high voltage conductors
Armouring with Galvanized Soft Steel Wires.
MACHINE PERFORMANCE

Max. Linear Speed: 61 m/min

2. A driven pintle system, independently motorized by AC motors, which allows the operator to unload/load one bobbin at a time. The transmission is mechanically irreversible by a high ratio worm reducer to secure safe locking.
An automatic diameter control feature lets the machine speed up when the rotating mass decreases which in turn increases the average speed of the rigid stranding line
UPS and Dynamic Regenerative Drive System to bring the entire machine to a controlled stop during a power failure without product damage.
Safety PLC with Remote I/O for ease of maintenance and troubleshooting.

3,.Gear transmission to minimized noise
Auxiliary motor speed reducer for optimized cage loading / unloading
Rugged monolithic rotor construction provides mechanical reliability and excellent performance under the most extreme conditions
Semi - Automatic Loader. Semi-automatic unloading / loading device (one per cage) without the intervention of the operator
The Compacting Heads are specially designed for tight tolerances required for the manufacture of bare sector elements for Milliken conductors
Wire tension settable from HMI
Wire tension kept constant from full to empty reels
Wire break detector for each reel
Strands can be produced in a single or multi-pass by connecting the cages in tandem mode

4.The machine can be equipped with a special forming plate for trapezoidal wires for the production of ACSR/TW overhead conductors.
Pre-formers for Al alloy production and steel armouring.
Post-formers for aerial strands.
Binding and longitudinal taping heads for water blocking tape applications.
The line can be equipped with various kind sof loading devices, depending on the available space: side trolleys or hydraulic platforms.
For screening applications there are available a full range of eccentric, concentric and tangential taping heads for plastic, copper, aluminum, and steel tapes

2. Main Technical parameter:

3. Reference picture of rigid stranding machine

About Installation:

Payment:30% as deposit, the balance is before delivery
Time of Delivery: within 120 days from the date of down payment receipt.
Price Valid Date: 30 days
Quotation base: FOB Price.
HS code: 84794000
Condition of machine: 100% new, with the quantity and quality according to contract.
Country of original and manufacturer: BEYDE TRADING CO.,LTD --- CHINA
Packing : To be packed in containers, suitable for long distance sea transportation and secured against change of climate and shock
Warrant time: 12 months after installation
Way of Transportation: By Sea( factory near Tianjin Seaport)
The seller shall provide installation service, lifelong free remote technical guidance, and cost price supply of wearing parts.
When the machine arrives at the customer's factory, the seller sends engineers to install it, or a local agent is responsible for the installation. The buyer is responsible for transportation, food, and accommodation, and provides engineers with a daily wage of $100

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

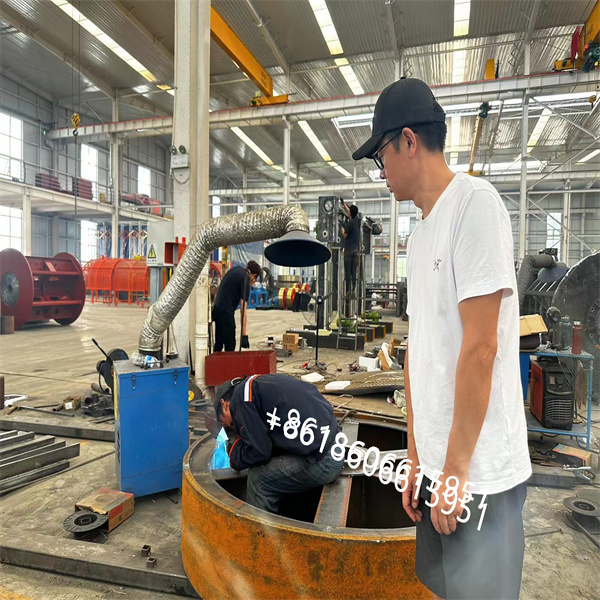

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management
