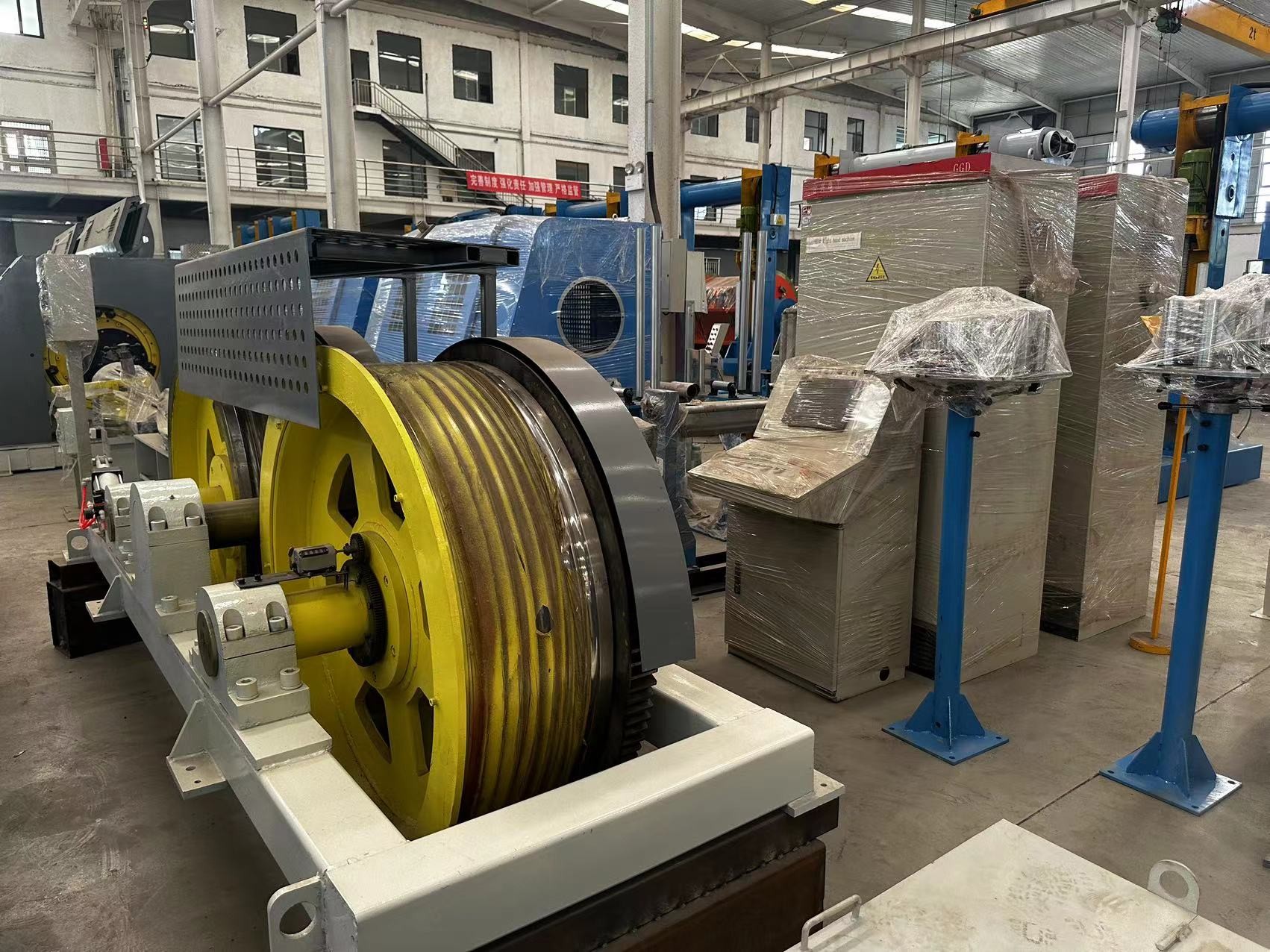

    Steel Wires Tubular Strander Machine JGG-630/8F Siemens Motor Driving

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : tubular closer
    Certification :
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 120 Set/Year
    Delivery Time : 90 Days after receive deposit
    • Product Details
    • Company Profile

    Steel Wires Tubular Strander Machine JGG-630/8F Siemens Motor Driving

    Steel Wires Tubular Strander Machine JGG-630/8F Siemens Motor Driving


    1. Description

    This tubular stranders line is used for stranding Steel , AL and CU wire ,as well as cabling the control cables.


    2. Characteristic

    2.1 This tubular stranding body is a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.

    2.2 Bobbin is clamped by disc springs and released by pneumatic control device.

    2.3 Wire break and wire emergent stops provided for all the line

    2. 4 The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable.


    3. Main Specification


    Reel sizeMax. rotation speed (rpm)Wire dia.
    6B12B18B24BAL(mm)CU(mm)Steel(mm)
    200(mm)12009001.0~2.50.2~1.50.2~0.8
    315(mm)9008001.0~2.50.5~1.80.3~1.0
    400(mm)9008005501.0~2.51.4~4.00.6~3.0
    500(mm)8006004503501.3~5.01.8~5.01.3~3.5
    560(mm)7005004003001.3~5.01.8~5.01.3~3.5
    630(mm)7005003302601.3~5.02.0~6.01.3~3.5
    710(mm)4003001.3~5.02.0~6.01.3~3.5
    760(mm)3501.3~5.02.0~6.01.3~3.5

    Steel Wires Tubular Strander Machine JGG-630/8F Siemens Motor DrivingSteel Wires Tubular Strander Machine JGG-630/8F Siemens Motor DrivingSteel Wires Tubular Strander Machine JGG-630/8F Siemens Motor Driving


    Steel Wires Tubular Strander Machine JGG-630/8F Siemens Motor Driving


    Electric control system:
    The power supply of this machine is a three phase five wire system, with a three phase 380V (± 10%) and 50Hz Total 230kw
    The unit options touch screen+PLC for unified management
    Control Function Description: It insists of two sets of electrical cabinets placed separately, including: power cabinet, main control cabinet, and auxiliary control cabinet
    The main control cabinet is divided into two zones:
    A. The first area of the main control cabinet: can complete the start, stop, job, speed regulation, and emergency stop of the entire machine motor;
    B. The functions of the auxiliary control cabinet include: start, stop, job, speed regulation, and emergency stop of the winding function
    C. The main control cabinet is placed on the front console operation side, and the auxiliary control cabinet is placed in the position of receiving and discharging cables
    D. Touch screen display: The touch screen is installed on the main console of the host, which can complete the following settings and displays:
    a) Set the overall speed
    b) Various job speed settings
    c) Host speed ratio setting
    d) Production meter length setting
    e) Display of actual linear speed value
    f) Display the actual value of production meter length
    g) Display the actual values of current, frequency, speed, and torque of each variable frequency motor
    h) Random display of equipment faults and query of fault pages
    4.8.4 Start the entire machine and add sound and light warning function
    4.8.5 The entire machine options a fully digital control system with a programmable controller as the core and a touch screen as the human machine interface It communicates with the frequency converter through the field bus to achieve automatic control of the entire production line, fully meeting production requirements
