High Safety 1+4/1250 Mm DIN Bow Cabler For Laying-Up Of Round Insulated Conductors

For laying-up of insulated conductors, each one up to 95 mm2.
Production speed: 160 rpm max.
Complete line composed by following items:

1250 mm central pay-off.

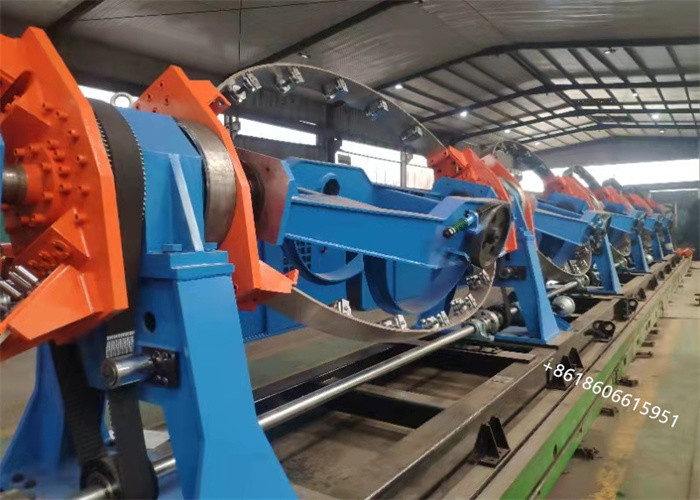

4 bows strander (laying-up machine).
Closing die support.
Double wheel pulling capstan.
2200 mm column type take-up.
Electrical cabinet and control desk.

1000/4 bobbins strand cage

4.2.1. Max core hole diameter :φ15mm

4.2.2. Applicable reel model: PN1000

4.2.3 Bow material: stainless steel

4.2.4. Bow rotation speed: 120r/min

4.2.5. Tension form: mechanical friction

4.2.6. Power of winch motor: 37KW (AC)

4.2.7 The cradle adopts end shaft type manual clamping

and loosening reel, with mechanical locking and retraction mechanism.

Steel plate welding, numerical control cutting plate, firm welding, cradle overall annealing to improve the mechanical strength, overall boring to ensure concentricity, and both ends are supported by bearings,

4.2.7 The setting out tension is controlled by wheel tension belt friction, and the tension is manually adjusted after shutdown, which is easy to operate.

4.2.7 The leading out end of the cradle frame is provided with upper and lower adjustable guide wheels, and guide cylinders are added on the left and right to ensure smooth running of the cable core. Not easy to scratch,

4.2.8 The pantograph is made of special steel, running at high speed, not broken, safe and stable.

4.2.9 The winch cage is installed on five groups of independent bearing seats. The large unit is equipped with an integral welded base, transported separately, installed on site, the aging is positive and horizontal, and fixed by pouring cement.

4.2.10 The winch is driven by 37KW AC variable frequency motor. The winch is driven by through shaft linkage and multiple toothed belts. Each section of winch bow is linked respectively. It has high synchronization and low noise. It can be braked in sections at the same time. The pneumatic disc brake is adopted, and the braking is sensitive.

4.2.11 The front end of the main machine is equipped with a filling frame, and the number of hemp balls is 12 (size of hemp ball: Φ 200mm) × 300mm length).

4.2.12 The winch adopts fully enclosed and push-pull protective cover. The protective cover is interlocked with the electrical appliances of the unit. It can be started only after the protective cover is closed, so as to effectively improve the safety level. Built in lighting working light, beautiful appearance, large disc change space and safe operation.
