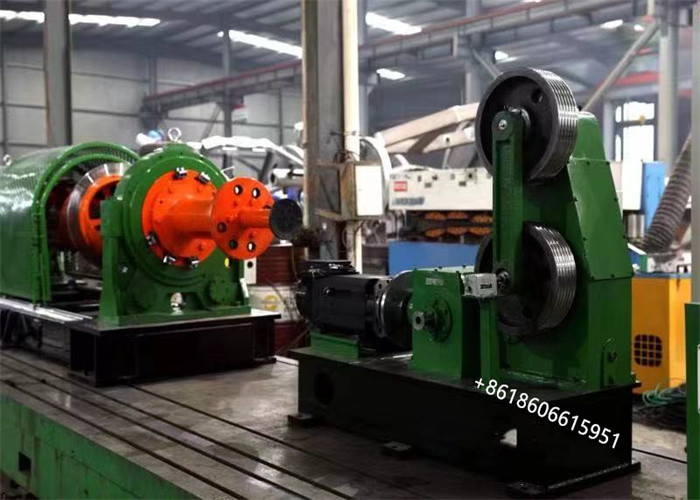

Fast Speed Tubular Strander&Closer 315/1+18 For 1mm 1x19
Stainless Steel Wire Rope
1. Application:
The rotor is the important component be used in tubular stranding
machine:
Rotor for 150,200,250 and 300mm bobbin is made of high-quality
seamless pipe. Eliminate stress through annealing after crude
processing, then at last take the precision processing. Adjust the
balance accurately by dynamic balance test.
Rotor for 400,500,630 and 800mm bobbin is made of high-quality
steel plate and rolled. Welded and crack detection, then eliminate
stress through annealing after crude processing, then at last take
the precision processing. Adjust the balance accurately by dynamic
balance test.
Machine Technical Parameter
Reel Size
(mm) | Max.Rotation Speed(rpm) | Max.Rotation Speed of Cage(with Stranding Bow) | Single Wire Diameter |
| 6B | 12B | 18B | 24B | 36B | Bow Cradle | Max.Rotation Speed | Alumimum | Copper | Steel |
| | | | | | | | | | |
| φ315 | 1400 | 1300 | 1200 | 1000 | 800 | | | φ1.2~φ2.0 | φ1.0~φ2.0 | φ0.4~φ1.0 |
| φ400 | 1300 | 1200 | 1100 | 900 | 800 | φ800 | 500 | φ1.5~φ3.0 | φ1.5~φ3.0 | φ0.6~φ2.0 |
| φ500 | 1100 | 1000 | 850 | 750 | 700 | φ1000 | 400 | φ1.5~φ4.0 | φ1.5~φ4.0 | φ0.75~φ3.0 |
| φ560 | 900 | 800 | 700 | 650 | 600 | φ1250 | 350 | φ1.5~φ5.0 | φ1.5~φ5.0 | φ0.85~φ3.5 |
| φ630 | 900 | 800 | 700 | 650 | 600 | φ1250 | 350 | φ1.5~φ5.0 | φ1.5~φ5.0 | φ0.85~φ3.5 |
| φ710 | 600 | 500 | 450 | 400 | 350 | φ1600 | 300 | φ1.5~φ6.6 | φ1.5~φ6.6 | φ0.85~φ4.5 |
| φ760 | 500 | 450 | 400 | 350 | 300 | φ1600 | 300 | φ2.0~φ7.0 | φ2.0~φ7.0 | φ1.2~φ4.5 |
| φ800 | 450 | 400 | 350 | 300 | 220 | φ1600 | 300 | φ2.0~φ7.0 | φ2.0~φ7.0 | φ1.2~φ4.5 |
4.Mechanical and electrical components
5.1 The bearings are from Ha Erbin, Wa Fangdian and Luoyang brand.
5.2 Motors are from Chinese famous products.
5.3 AC driver is from Danfoss brand.
5.4 DC driver is from SSD Parker 590 series brand.
5.5 PLC is from Siemens.
5.6 Touch screen is from Siemens.
5.7 Main low voltage electric components are from high quality and
well-known Chinese brand.
6. FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train
our customers' employees and ensure the smooth production of
customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical
debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the
production of cable machinery, providing high-quality,
high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample
design.
We can provide customers with after-sales service.
