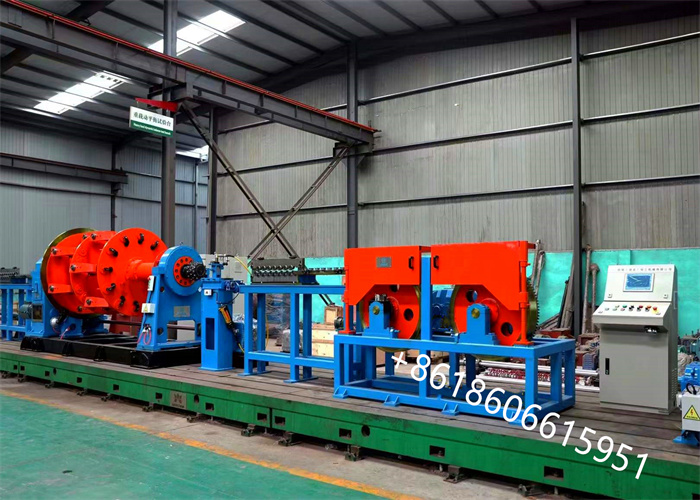

Automatic Separate Motor Driving Motor Type Planetary Stranding Machine

Planetary strander JLY630/6+12

(Separate motor driving, column take-up)

Technical sheet

1. Application: The equipment is mainly used for the cable forming of insulated core wires such as steel strand, control cable, signal cable and small-size plastic cable, and has the function of winding at the same time.

The equipment is composed of PLC program control + touch screen + variable frequency speed regulation control + pneumatic control. The synchronous performance deviation of the equipment from start-up, normal operation, slow shutdown, emergency shutdown and other states shall not exceed 3%, so as to ensure the stability of the winch pitch

2. Main Parameter:

3. Main components:

4.2.1. Driving form of winch cage :separate motor drive

4.2.2. Applicable reel specifications : PND630

4.2.3. 6 reel motor power : 45KW(AC)

4.2.4. 12 reel motor power : 55KW(AC)

4.2.5. Tension form of setting out in winch cage : Belt type mechanical friction

4.2.6. Maximum speed of 6B : 80r/min

4.2.7. Maximum speed of 12B : 70r/min

4.2.8. Stranding pitch : 80~800mm

4.2.9. Winch drive operation mode: each winch is driven and operated by its own separate motor. The transmission device provides power for the operation and slow positioning of the equipment. The transmission device drives the winch through the reduction motor through the toothed belt. The winch reduction box drives the winch to operate. The forward rotation, reverse rotation, neutral gear, start, stop, emergency stop and other operation settings of the winch are controlled by the electrical system

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management

of the company decided to repurchase a new piece of land of 10,000 square meters, and built the second processing plant in half a year. branch, and recruited 50

skilled workers, led by professional team personnel, and achieved good benefits, greatly relieving the pressure of production.

Beyde company is used for international advanced cable and wire processing equipment. In China, we are the only real manufacturers with independent processing and design capabilities.

The company produces 200-300 cable machines per year, especially pipe stranding machines, accounting for 60% of the Chinese market.
