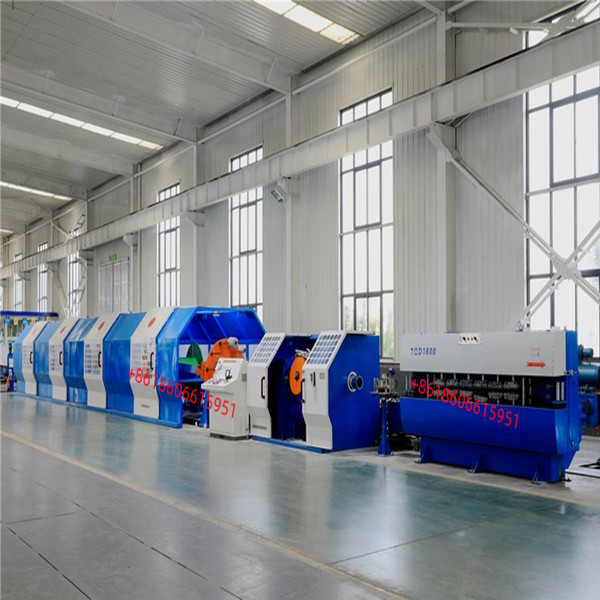

    Wire And Cable Strander Layup Machine Skip Type Twisting Machine

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 1250 1+5
    Certification :
    Payment Terms : L/C, D/P,, T/T, D/A
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Wire And Cable Strander Layup Machine Skip Type Twisting Machine

    Wire And Cable Machine Bow Type Laying Up Machine Strander Skip Type Twisiting Machine


    achine type1250
    Wire product of standSpecial use twist aluminum and copper round press dowm the conductor
    Cooper wire individualΦ1.5-4.8
    Finish standed wire/max.10 mm φ/max
    Finish standed wire/Max.15mm φ/max
    Section of strand-twisting(Flexible strand)3.5÷70mm2(6AWG÷450MCM)
    Section of strand-twisting(Semi-frametwisting1+6)3.5÷50mm2(6÷1/0AWG)
    Section of compaction Cu3.5÷50mm2(6AWG÷300MCM)
    Section of compaction Al3.5÷70mm2(6AWG÷301MCM)
    Line speed/Max.150mpm/max
    Stand pitch(mm)40-350mm
    608000rpm/max.(1600TPM)
    Load weight/Max.3000KG
    Max.compaction angle13%
    Traction pulley2×φ600mm
    Standing DirectionS,Z Direction
    Main motor(DC/AC/HP)55kw D.C. motor
    Drive of Capstan(DC/AC/HP)30kw D.C. motor
    Drive of take-up unit(DC/AC/HP)7.5kw D.C. motor
    Drive of traverser0.75kw Inverter motor
    Drive of liading&unloading1.5kw Inverter motor
    Power controlDigital type DC control
    Revise systemLine speed synchronous auto control
    Spool bobbin size ODOD:φ1250 mm/Max
    Spooler size OW950×800×80(mm)
    Control systemPLC man-machine interface
    Tension controlCoiling motor indicates tension control
    Lay stranding pitchPLC digitization setting
    Operating directionLeft/ right hand machine
    Traversing width1000mm/Max
    Traversing unitWire diameter setting by digital type
    Take-up typeReel taken between pneumatic pintles
    Reel loading & unloadingLiquefaction automatic positioning
    Brake systemDisc brake
    Bearing lubricative typeOiling regularly
    Air pressure6kg/cm2
    Vogtage380V 50Hz
    Noise level80db
    Machine size(L)6030×(W)2280×(H)2280mm
    Weight12500kg
