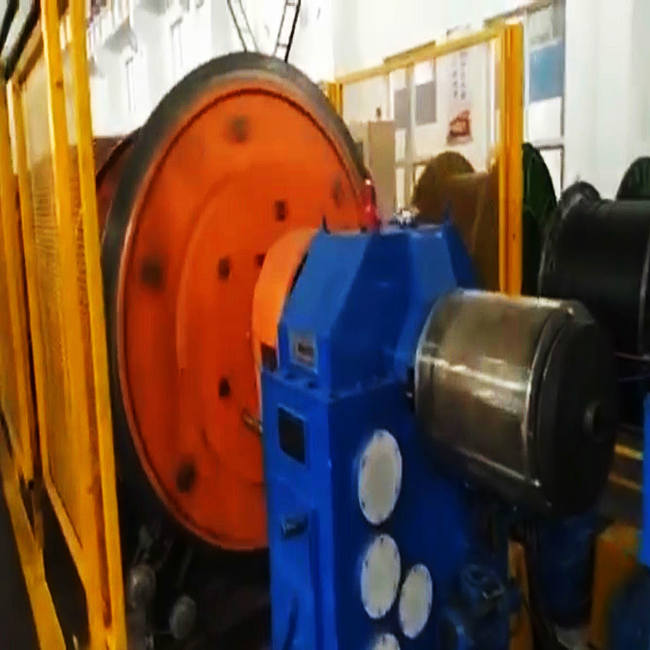

    Glk500/24+24 Dia 1-4mm Armouring Machine With Color Touch Screen

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 500/24+24
    Certification :
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Glk500/24+24 Dia 1-4mm Armouring Machine With Color Touch Screen


    steel wire armoring and shielding machine glk500/24+24 dia. 1-4mm cable armored twisting machine


    1. Application
    This machine is mainly used for armouring single or double steel wire around the cable, or manufacturing large section of steel wire ropes.


    2. Main Component
    Central pay-off strand, armouring hose, die holder,taping device,traction device,meter counter, take-up traverse device,transminssion system and electric control system.


    3. Main features
    3.1 The machine is suitable for stranding long length and section bare aluminum copper , aluminum alloy, aluminum cable steel reinforcing wires to product the following power cables. Sector shapped conductors,round compacted ,single core prespiralled.
    3.2 Reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more,the equipment has high-powered, high speed.
    3.3 It driven by 36-stage gear-box,the tow wheels of double wheel capstan are overhung position supported on shafts. One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out. The maximum pulling force reaches 15T.each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.

    4. Technical parameters

    STEEL WIRE ARMOURING MACHINE FROM BEYDE TRADING

    Model (Steel Wire Armoring Machine)
    GLY-315GLY-400GLY-500GLY-630
    Steel wire diameter1-2 .5 mm1-2 .5 mm1-2 .5 mm1-2 .5 mm
    Maximum stranded OD40 mm55 mm60 mm70 mm
    Stranding Pitch
    24 Bobbin Stranding Cage
    38-75251-94263- 1144500-4120

    36 Bobbin Stranding Cage
    38-75251-94263- 1144500-4120

    42 Bobbin Stranding Cage
    38-75251-94263- 1144500-4120
    48 Bobbin Stranding Cage38-75251-94263- 1144500-4120
    Rotating Speed24 Bobbin Stranding Cage98 r/min90 r/min68 .3 r/min55 r/min
    36 Bobbin Stranding Cage88 r/min80 r/min58 .3 r/min45 r/min
    42 Bobbin Stranding Cage78 r/min70 r/min48 .3 r/min35 r/min
    48 Bobbin Stranding Cage68 r/min60 r/min38 .3 r/min28 r/min

    Capstan
    Capstan Wheel Diameter1600 mm2000 mm2000 mm2500 mm
    Maximum Haul-off Force10T15T15T20T

    Motor Power
    45 KW55 KW55 KW75 KW

    Bobbin Size
    315 mm400 mm500 mm630 mm

    Center Payoff Bobbin
    1250 mm2000 mm2000 mm3150 mm

    Take- up Bobbin
    1250 mm2000 mm2000 mm3150 mm

    Maximum Haul-off Linear Speed
    25 m/min30 m/min34 .7 m/min45 m/min

    Central Height
    1000 mm1000 mm1000 mm1100 mm
