    630/500 Rigid Strander 54 Bobbin Row Loading Copper Wire Stranding Machine

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 12+18+24 For 630mm
    Certification :
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    630/500 Rigid Strander 54 Bobbin Row Loading Copper Wire Stranding Machine

    630/500 Rigid Strander 54 Bobbin Row Loading Wire Stranding Machine

    1. Application
    As a result of technical innovation and optimized design, rotating speed of the stranding case Applicable to stranding copper conductor, aluminum conductor, and aluminum conductor steel reinforced (ACSR) without backtwist, as well as insulated wire and strand. Fitted with a compactor, it is also applicable to stranding round-shaped, semi-round-shaped, and sector-shaped copper conductor or aluminum conductor.

    2. Main technical datas

    Model (Rigid Stranding Machine)JLK-500JLK-630JLK-710/720
    Diameter of single wireCopperφ1.5-5 mmφ1.5-5 mm φ1.5-5 mm
    Aluminumφ1.5-5 mmφ1.5-5 mmφ1.5-5 mm
    Maximum stranded conductor ODφ35-55 mmφ35-55 mmφ35-55 mm
    Stranding Pitch6 Bobbin Stranding Cage40-719 mm51-896 mm54-963 mm
    12 Bobbin Stranding Cage40-719 mm51-896 mm54-963 mm
    18 Bobbin Stranding Cage44-793 mm63-1056 mm57-1012 mm
    24 Bobbin Stranding Cage51-924 mm71-1246 mm66-1190 mm
    30 Bobbin Stranding Cage57-1028 mm87-1553 mm79-1403 mm
    Rotating Speed6 Bobbin Stranding Cage230.6 r/min180.1 r/min150.6 r/min
    12 Bobbin Stranding Cage230.6 r/min180.1 r/min150.6 r/min
    18 Bobbin Stranding Cage208.5 r/min155 r/min142.6 r/min
    24 Bobbin Stranding Cage179 r/min130.1 r/min122.3 r/min
    30 Bobbin Stranding Cage161.8 r/min115.9 r/min102.7 r/min
    CapstanCapstan Wheel Diameter2000 mm2000 mm2000 mm
    Maximum Haul-off Force30 T30 T40 T
    Pre-spiral DevicePitch500-2500mm500-2500mm500-2500mm
    Motor Power90-180 KW110-180 KW130-180 KW
    Bobbin Size500*375*127630*475*127710*530*127
    Center Payoff Bobbin1600*800*801600*800*801600*800*80
    Take-up Bobbin2500*1500*1252500*1500*1253150*1900*160
    Maximum Haul-off Linear Speed69 m/min69 m/min62 m/min
    Central Height1000 mm1100 mm1100 mm

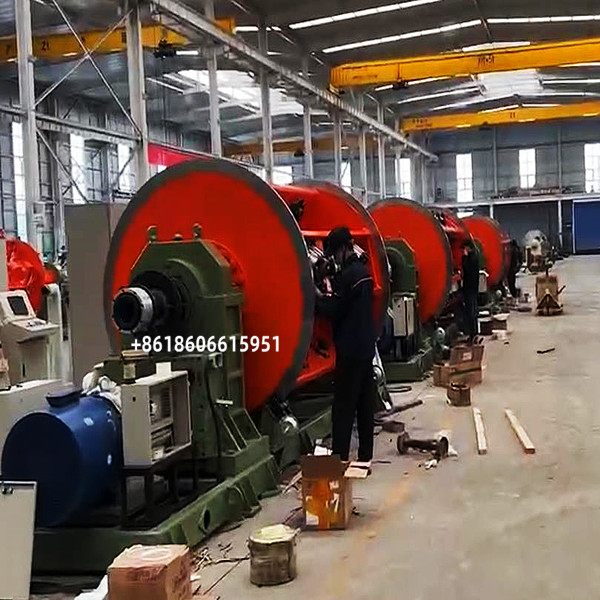

    Beyde Trading Co., Ltd. was established in 1983. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.


    Since 2006, relying on the care and support of our customers, BEYDE Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


    Now, Beyde Trading Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
