    6mm2 Cores PVDF Pvc Cable Extruder Machine High Capacity

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 50+35
    Certification :
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

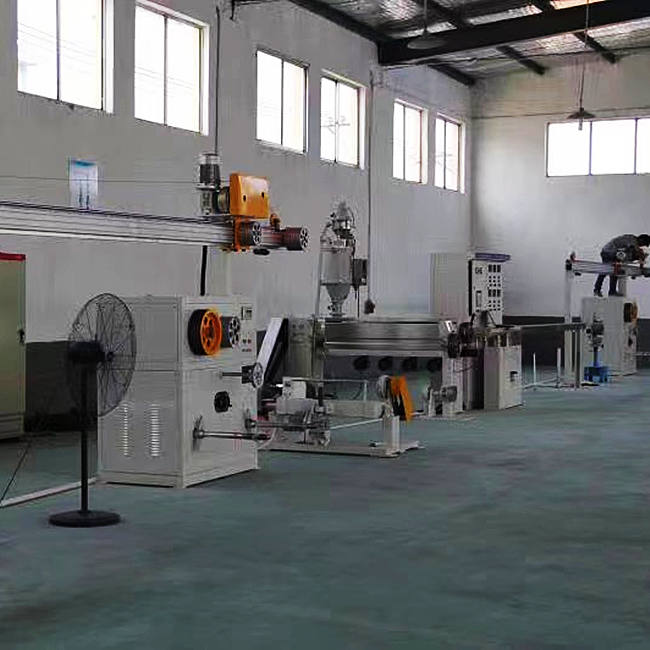

    6mm2 Cores PVDF Pvc Cable Extruder Machine High Capacity

    6mm2 Cores Cable Manufacturing Machine , PVC Cable Extrusion Line High Capacity


    1. Application:

    This extruder line is mainly used for production of HDMI cables, Coaxial cables, DATA cables, Transmission cables etc.
    2. Material: FM-PE, PE
    3. Foaming degree: High pressure nitrogen injection system: 82%
    Low pressure nitrogen injection system: 75%
    4. Quality control: out diameter test and capacitance detector available.


    5. Main Technical Parameter of Foaming Extruder Line
    Physical Foaming Extruder Line Technical Parameter
    ModelHL-45+30HL-65+35HL-90+35
    Pay-off bobbinsØ 400-500 mmØ 500-630 mmØ 800 - 1000 mm
    Pay-off typePassive pay-off or active pay-off
    Conductor diameterØ 0.4 - 1.0 mmØ 0.8 - 2.0 mmØ 1.0 - 5.0 mm
    Cable diameterØ 1.5 - 5.0 mmØ 3.0 - 14 mmØ 5.0 - 40 mm
    Main screw diameterØ 45 mmØ 65 mmØ 90 mm
    Screw L/D34:136:1
    Extruding capacity30 kg/h60 kg/h150 kg/h
    Main motor power15 HP30 HP45 HP
    Cooling tank length25 m35 m45 m
    Production speed10-180 m/min10 -150 m/min10 - 100 m/min
    Take-up bobbinsØ 500 - 630Ø 630 - 800Ø 800 - 1000
    Control systemPLC+ Touch screen

    A) apply for drawing and extrude BV building wire,LAN cable and local cable.Merits: 1. Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor. 2. The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.


    B) Device structure:drawing machine,annealing machine,extruder,take up machine,tester and other equipments.
