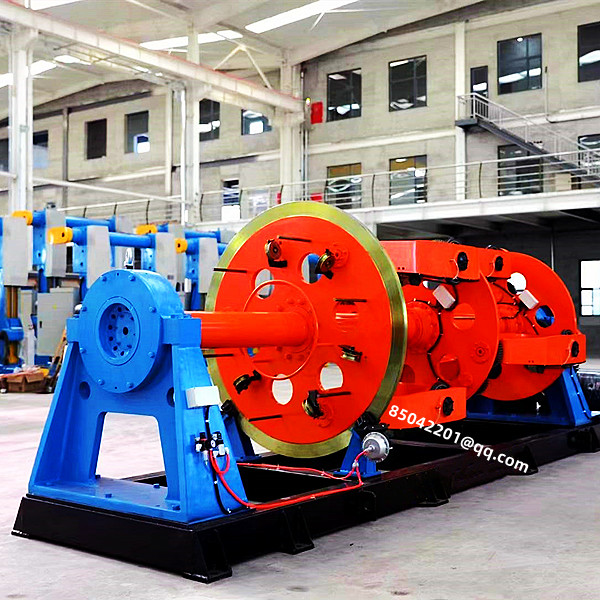

    JLY-630-1+6 Cu Wire Stranding Machine With Back Twist Cabling Insulated Wire

    JLY-630-1+6 Planetary Stranding Machine For Stranding Cu Wire With Backtwist Cabling Insulated Wire

    Main Parts:

    1. 500-630 stationary pay-off

    2. 6 Bobbin planetary strander

    3. Pressing die stands

    4. Counter meter device

    5. Φ1600 double wheel Capstan

    6. Φ1600 column type take-up stand

    7. Transmission system

    8. Electrical system

    9. Safety fence


    Advantage:


    1. The expansion connection shafts of the cradle adopting the technology from France, which avoids the abrasion between the shafts and keys. Easy installation and commissioning.

    2. No need of gearboxes nor ground-shafts; no noise, no leakage, lower power consumption, easy maintenance and repair

    3, Siemens S7-200 PLC with profibus can realize on-site monitoring, coordinate between different motors, DANFOSS converter controls the DC MOTORS on and off, operation, and speed control. Parameters could be set, changed and displayed on the TOUCH PANEL. Advance electrical control, easy operating, and reliable operation

    ModelJLY-500JLY-630
    Diameter of single wire(mm)Copperø1.5- ø 5.0ø 1.5 5.0
    Aluminumø 1.8- ø 5.0ø 1.8- ø 5.0
    Insulated coresø 2.0- ø 8.0ø 2.0- ø 10
    Stranding pitch6BStep-less, adjustableStep-less, adjustable
    12BStep-less, adjustableStep-less, adjustable
    18BStep-less, adjustableStep-less, adjustable
    24BStep-less, adjustableStep-less, adjustable
    Stranding cage motor power(KW)6B4575
    12B5590
    18B75110
    24B90132
    CapstanMaximum liner speed(m/min)5142
    Motor power(KW)5555
    Taping headMaximum rotating speed(RPM)500500
    Taping pitchStep-less, adjustableStep-less, adjustable
    Motor power(KW)1111
