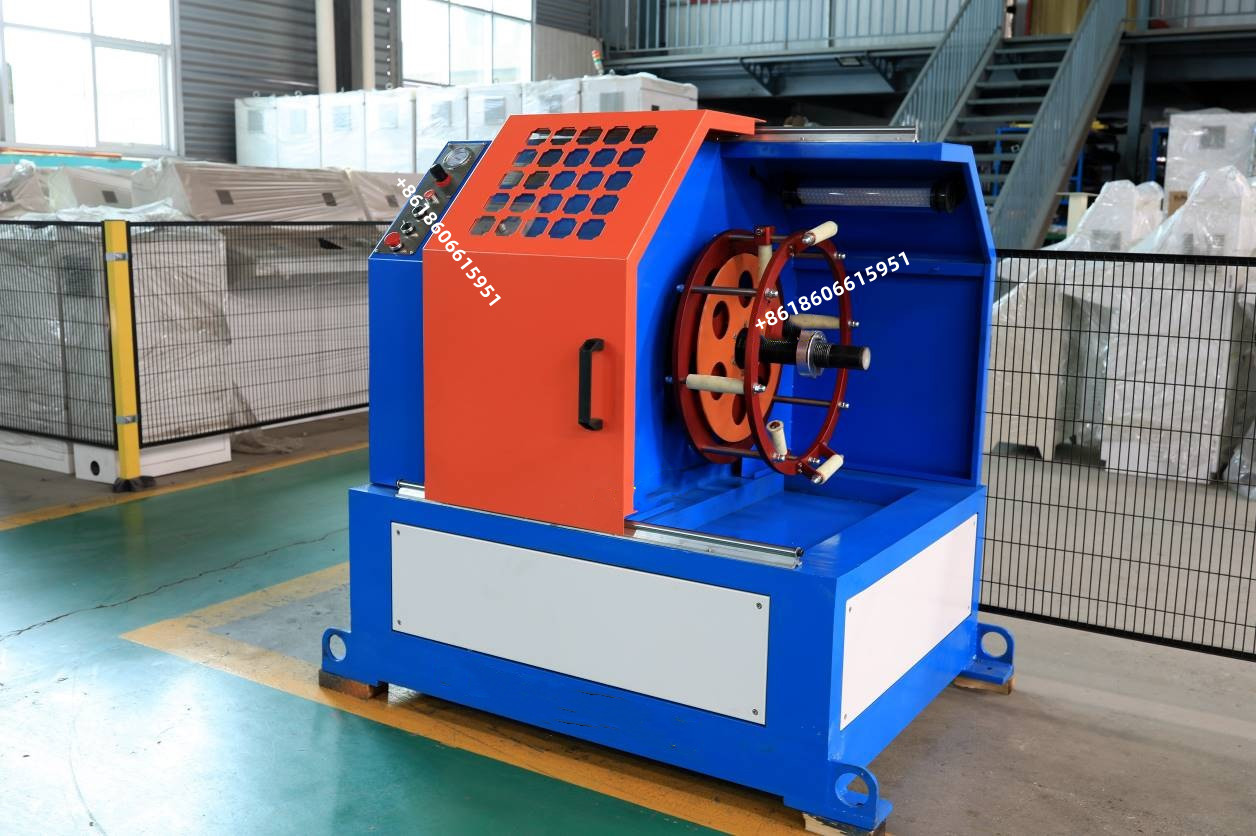

Dual Head PD400 Non-metallic Wrapping Machine Max Rotation Speed 650r/Min​

• Through wire diameter of main shaft: Ф 20mm max
• Pad specifications: Φ 400*Φ 52*(20～60)mm
• Wrapping speed:1200m/min
• Wrapping pitch: stepless adjustable on PLC
• Wrapping motor: 2.2KW (AC variable frequency motor)
• Wrapping tension: Mechanical friction, manually adjusted
• Wrapping materials: polyester tape, non-woven fabric, aluminum plastic composite tape, glass cloth, semi conductive cloth, etc.
• Wrapping head is tangent type. The AC variable frequency motor is driven separately, It has the function of left and right rotation switching
• The air caliper type pneumatic brake, and the brake speed can be adjusted to achieve consistent and coordinated braking, inching and other actions of the whole machine
• Equipped stable wire mold base
• Fully enclosed safety cover, with built-in lighting, stop machine when open cover,
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V

Beyde Trading Co.,Ltd.(Know as Beyde) is the representative office for cable stranding machine factory(Built in 1995)in Hebei, China. BEYDE was set up to meet international business for those factories. One hour and a half hours from Tianjin Port, China, BEYDE keeps superior quality and competitive offers for global valued customers.

BEYDE Trading Co.,Ltd. is a manufacturer engaged in producing cable machines many years. The main products in our company including wire drawing equipments, cable stranding machine, strandingmachinery, plastics extruder and cable Reel drum. We always insists on using the best material to make the machine, so our machines are durable than general machine. We have a lot of customers who use our machine over than 20 years and still using now. Besides, We are makers by ourselves, not machine traders. Therefore, We sell to customers at a low price. We can design any types machine according to the demand of customers. We offer professional technique and services to our customers. Service overseas is provided by our company. We look forward to become your most valuable partner in the future. Let us create a wonderful future!

In 2019, due to the continuous increase of orders, the original production workshop could no longer meet the production requirements. Therefore, the management

of the company decided to repurchase a new piece of land of 10,000 square meters, and built the second processing plant in half a year. branch, and recruited 50

skilled workers, led by professional team personnel, and achieved good benefits, greatly relieving the pressure of production.

Beyde company is used for international advanced cable and wire processing equipment. In China, we are the only real manufacturers with independent processing and design capabilities.

The company produces 200-300 cable machines per year, especially pipe stranding machines, accounting for 60% of the Chinese market.
