    LSP Type 1600/2500 Portal Walk Type Take - Up And Pay - Off Line And Traverse Machine

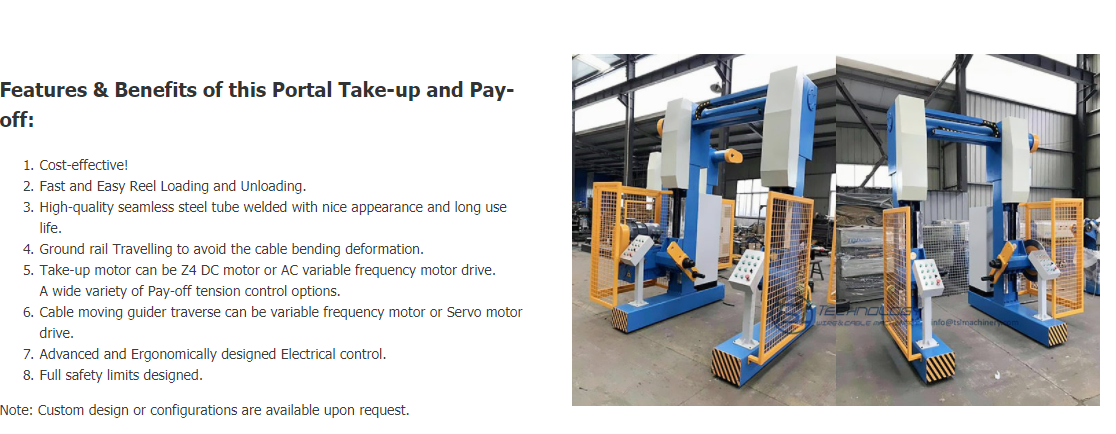

    LSP Type 1600/2500 Portal Walk Type Take-up And Pay-off Line And Traverse Machine


    Structure


    PoRtal rail walking type, upper casing type structure. The gantry is made of bending and welding.

    The two tops of the reel are driven by two motors via a cycloid reducer to lift the screw nut.

    Each apex can be lifted separately or simultaneously, and is equipped with mechanical and

    electrical protection devices. It can be equipped with different specifications of the top sleeve

    to meet the installation of different specifications of the reel; the reel clamping is realized by the

    motor cycloid reducer, and the clamping overload protection is provided. The tension of the pay-off

    is realized by manual friction disc, which is manually adjustable and stable. Reliable and easy to operate.

    The take-up frame adopts the centering device to realize the centering line

    Technical datas:


    ModelΦ630/1250Φ800/1600Φ1000/2000Φ1250/2500Φ1600/3150Φ1600/3500
    Cable Dia. (mm) Max355070100120130
    Bobbin flange dia. (mm)Φ630-1250Φ800-1600Φ1000-2000Φ1250-2500Φ1600-3150Φ1600-3500
    Bobbin overall width (mm)475-950600-1180750-1500950-19001180-23001180-2300
    Load capacity(T)34-86-1012-1515-2018-20
    Line speed (m/min) Max1008080656050
    Traverse precision(%)1-21-21-21-21-21-2
