Stranding Usage - Planetary/Cage Type Strander

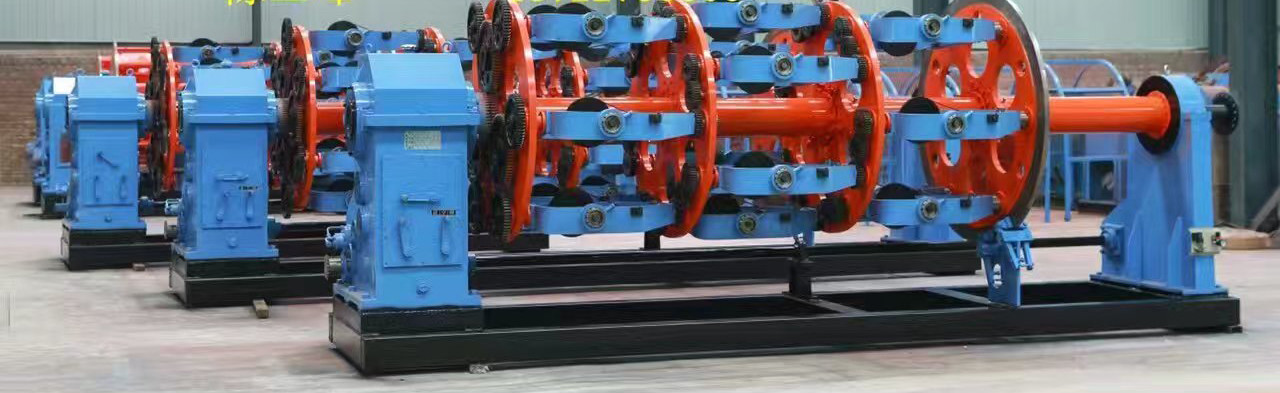

500 (1+6+12+18+24) planetary type cage twisting machine
Application:
Suitable for twisting of bare copper wire, bare aluminum wire,
power insulating wire , PVC/PE insulating wire, foaming coaxial
wire,kinds of new energy sources (photovoltaic, wind energy source, charging pile, high-speed rail,
nuclear power industrial etc) special cable, bending endurance and
high flexible robot cable, intelligent machine( industrial 4.0
machine) inside control cable, medical treatment cable, elevator insulating wire, composite optical cable, premise cable, and so on.
Features:
Planetary cabler is for manufacturing high quality control cable
and optical fiber cable multistrand cable production equipment. It
referency to the advanced cable equipment at home and abroad,
combined with our wire and cable manufacturing situation and
redesign. Its structure is composed of pay-off stand, stranding
cage, die holder, wrapping bobbin, meter counter, tractor device
and electric appliance controller etc. This machine adopts PLC
program control, use frequency conversion motor controller makes
output shaft speed constant. With hydraulic brake and electromagnet
braking when machine is stopping, so as to achieve steady and
quickly stop. Take up and traverse wire device adopts torque motor.
Torque motor starts operating before main stranding cage starts
running. Conversely, torque motor stops after stranding cage stops
so as to to meet the requirement of cable manufacturing process.
Main technical specification:
2.1 Power supply:380V,50Hz
2.2 Feeding conductor wire diameter: Φ0.8mm~Φ2.5mm
2.3 Feeding insulating wire diameter: Φ2.0mm~Φ6.0mm
2.4 Finished wire diameter:MaxΦ50.0mm.
2.5 Size of bobbin:
(1) size of motorized pay-off bobbin: Φ630mm, Φ800mm and Φ1000mm
(2) size of twisting cage bobbin :Φ630mm,
(3) size of take-off bobbin : Φ2000mm
2.6 Suitable wire : soft PVC, PE insulating wire , rubber wire ,
foaming wire
and bare copper wire, composite optical cable and so on.
2.7 Lay pitch: 50-600mm ±5%
2.8 Rated speed: 15-90r/min
2.9 Machinery centre-height: 1000mm.
Other Information:
Our company can provide all kind of Wire and Cable making machine,
such as Cage type twisting machine, Single twisting machine,
tensiong taping machine, Chemical foam extrusion machine, Teflon
high temperature extrusion, no halogen extrusion machine etc.
Equipment List:
1. Magnetic power payoff
2. Payoff stranding cage
3. Wire gathering device
4. Spark tester
5. Payoffsstranding cage
6. Wire gathering device
7. Spark tester
8. Center taping machine
9. Length measurement devuce
10. Two wheels capstan
11. Reciprocating take up
