    Physical Foam Coaxial Cable Extrusion Machine 25+45+30 150kg/H

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 90
    Certification : CE,ISO9001 &14001
    Payment Terms : L/C, T/T
    Supply Ability : 200 SET/YEAR
    Delivery Time : 40 DAYS
    • Product Details
    • Company Profile

    Physical Foam Coaxial Cable Extrusion Machine 25+45+30 150kg/H

    Hot Selling Physical Foam Extrusion Coaxial Cable Wire Extruding Machinery 25+45+30


    Specifications
    1.Technical application:
    the physical foaming production line Suitable for the extrusion of telecommunications cables,coaxial cable,radio-frequency cable,date cable,transmission cable and other physical foaming wire,for example:the double-layer or triple-layer extrusion of physical foaming core cable of HDMI,DVI,ATA,SATA,DP,RG,JIS,etc.


    2.Technical parameters of physical foaming equipment:

    Physical foaming production line
    Technical parameters
    Machine type30+4565+3590+4525+45+30
    Pay-off typeMotorized pay-off
    Pay-off reel400-500400-630800-1000400-500
    Screw diameterMain motor?45Main motor?65Main motor?90Main motor?25
    Auxiliary motor30Auxiliary motor35Auxiliary motor45Auxiliary motor45,post-auxiliary motor30
    Screw L/DMain motor 34:1Main motor 36:1Main motor 18:1
    Auxiliary motor 25:1Auxiliary motor 34:1,post-auxiliary motor 18:1
    MAX. Extrusion output30kg/h60kg/h150kg/h30kg/h
    Main motor power15HP30HP60HP15HP
    Conductor diameter0.4-1.0mm0.8-2.0mm1.0-5.0mm0.4-2.0mm
    Finish outer diameter1.5-5.0mm3.0-14.0mm5.0-30.0mm1.2-5.0mm
    Capstan wheel diameter630mm800mm1000mm630mm
    Haul-off power5HP5HP7.5HP5HP
    Cooling length25m36m45m25m
    MAX. Line speed180m/min150m/min100m/min150m/min
    Take-up typeDouble-shaft type
    Take-up shaft500-630mm630-800mm800-1000mm500-630mm

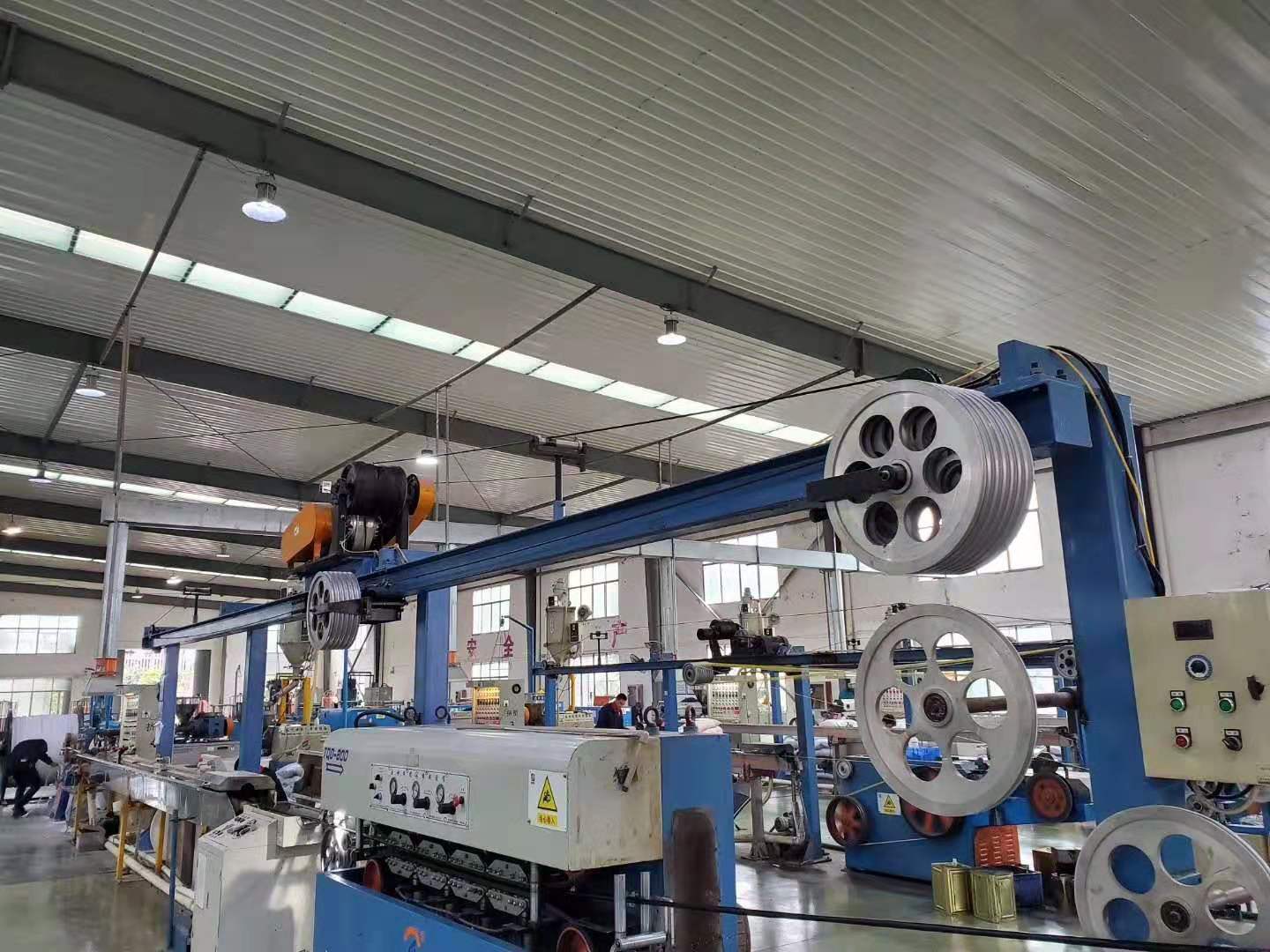

    3.Picture

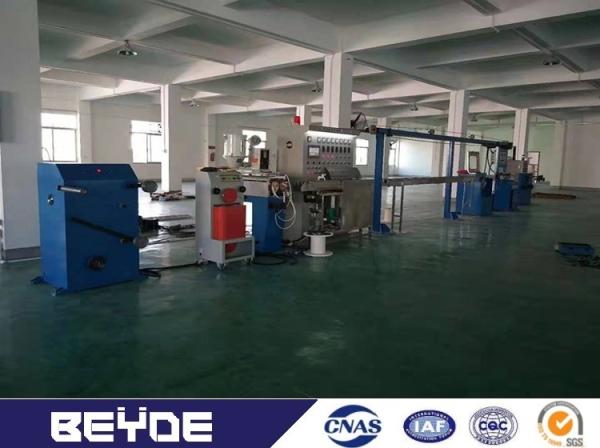

    Quality Physical Foam Coaxial Cable Extrusion Machine 25+45+30 150kg/H for sale
