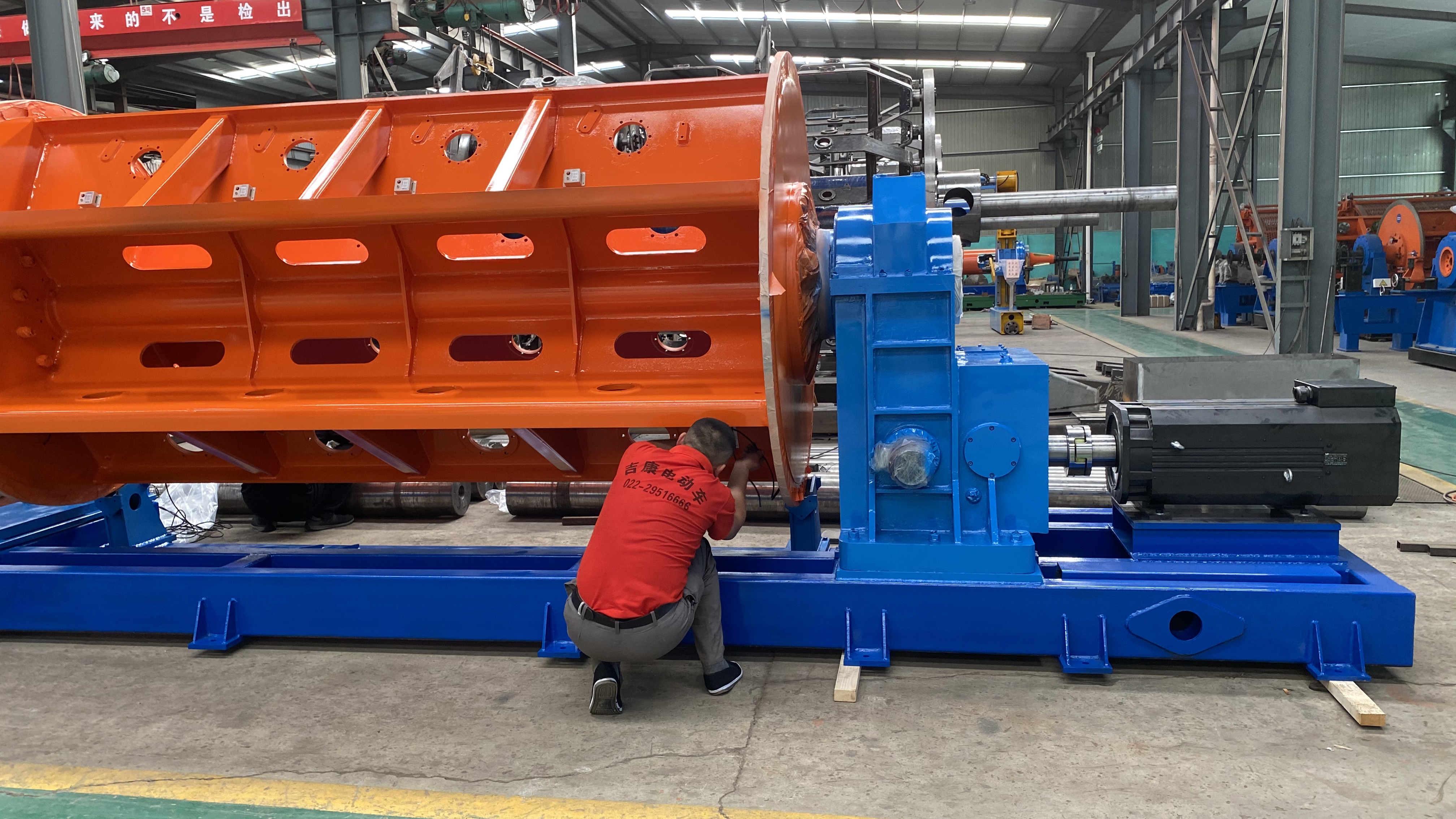

Fast And Stable 500/ 1+6+18 Rigid Frame Strander For Grounding Conductor Servo Motor

Mainly used for stranded section conductor compacting , round conductor stranding, drawing, pressing, etc., as well as stranding of small square ACSR. The whole machine adopts human-machine interface color touch product operation, which is coordinated and managed by programmable controller PLC. The whole machine adopts fully automatic dxj full-automatic disconnection monitoring system. The whole machine is easy to operate, with advanced electronic control system and stable operation.

Installation power:90kw
4.8.3
The electric control part is composed of power cabinet, operation cabinet, touch screen, etc., and each unit is equipped with corresponding control buttons
4.8.4
The electric cabinet adopts the mimic Rittal control cabinet, which has good mechanical performance and dust-proof performance design, and is equipped with appropriate forced ventilation fan
4.8.5
motor protection function: the design of electrical control circuit includes: phase loss, overload, overheat protection function to prevent motor damage
4.8.6
Alarm fault information can be inquired on the touch screen, with alarm fault and production process data storage function
4.8.7
Operating system: it can view the parameter settings in the production process in real time, such as pitch, production speed, current working status and other information
4.8.8
Programmable logic controller (PLC) can be connected to Ethernet to view fault information or remote view and update the operating system
4.8.10
The unit is controlled by PLC. Touch screen man-machine interface is used. The operation is simple and convenient. The unit is equipped with corresponding number of emergency stop and inching buttons at each operation position for easy operation
4.9 Operation condition monitoring system
4.9.1
All the cages are equipped with electronic monitoring device, which can monitor the actual running speed of the whole unit and the running state of the stranding pitch in real time.
