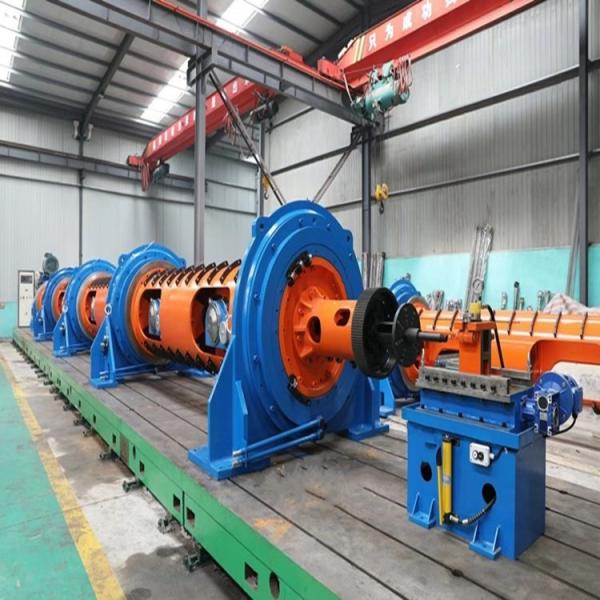

Professional Steel Wire Rope Manufacturing Equipment JGG-1+9/400+9/630 Tubular Twisting Machine
1.Use
This machine is mainly used for single layer stranding of steel
wire rope and steel wire within 19 cores in the same direction. The
appearance of the unit is planned and designed by the professional
technical team, breaking the conventional production process, with
atmospheric appearance, stable high-speed operation and low noise.
(1) 400/9 first series host
1 | Single wire diameter | Ø1.0~Ø2.5mm |
2 | Max strand external diameter | 8mm |
3 | Wire hole max diameter | Ø10mm (internal polishing of alloy nozzle) |
4 | Central core wire hole diameter | Ø10mm (internal polishing of alloy nozzle) |
5 | Strand pitch range | 35.33mm~365.23mm |
6 | Cage max rotation speed | 489.5r/min(50Hz) |
7 | Bobbin size in cage | Ø400(Ø400ר38×266) |
(2)630/9 second series host
1 | Single wire diameter | Ø2.0~Ø6.0mm |
2 | Max strand external diameter | 19mm |
3 | Wire hole max diameter | Ø16mm (internal polishing of alloy nozzle) |
4 | Central core wire hole diameter | Ø20mm (internal polishing of alloy nozzle) |
5 | Strand pitch range | 35.33mm~365.23mm |
6 | Cage max rotation speed | 350.0r/min(50Hz) |
7 | Traction line speed range | 17.13~130.18m/min |
8 | Bobbin size in cage | Ø630(Ø630ר56×476) |
9 | Take-up bobbin size | Ø800mm~Ø1300mm |
10 | capstan motor power | 55kw(AC variable frequency motor |
11 | main motor power | 90kw(AC variable frequency motor |
3.1 | Ø 630 Electromagnetic tension pay-off frame | 1 set |
3.2 | Ø400/9 main host machine | 1 set |
3.3 | Assembling die holder(manual hydraulic, pressure gauge shows pressure) | 1 set |
3.4 | Ø630/9 main host machine | 1 set |
3.5 | Assembling die holder(manual hydraulic, pressure gauge shows pressure) | 1 set |
3.6 | front side straightener | 1 set |
3.7 | main power system | 1 set |
3.8 | Ø1380+Ø1380 double traction device | 1 set |
eumatic backstop device for traction wheel(press three grooves) | 1 set | |
3.10 | Ø1300Top type take up and lay up stand | 1 set |
3.11 | safety cover | 1 set |
3.12 | Transmission system | 1 set |
3.13 | anchor bolts | 1 set |
![]() |
