I. Introduction

A planetary stranding machine is a crucial piece of equipment in the wire and cable manufacturing industry. It is specifically designed for stranding multiple wires or conductors together in a planetary motion, which offers several advantages over other stranding methods. This type of machine has become an indispensable tool for producing high - quality cables with complex structures.

II. Working Principle

The core principle of a planetary stranding machine lies in its unique planetary movement mechanism. In a typical setup, there is a central shaft around which several planetary spindles rotate. The wire or conductor to be stranded is fed through these spindles. As the planetary spindles revolve around the central shaft while also rotating on their own axes, the wires are twisted and intertwined in a precise and controlled manner. This planetary motion allows for a more uniform and consistent stranding process, resulting in cables with better electrical and mechanical properties.

III. Key Components

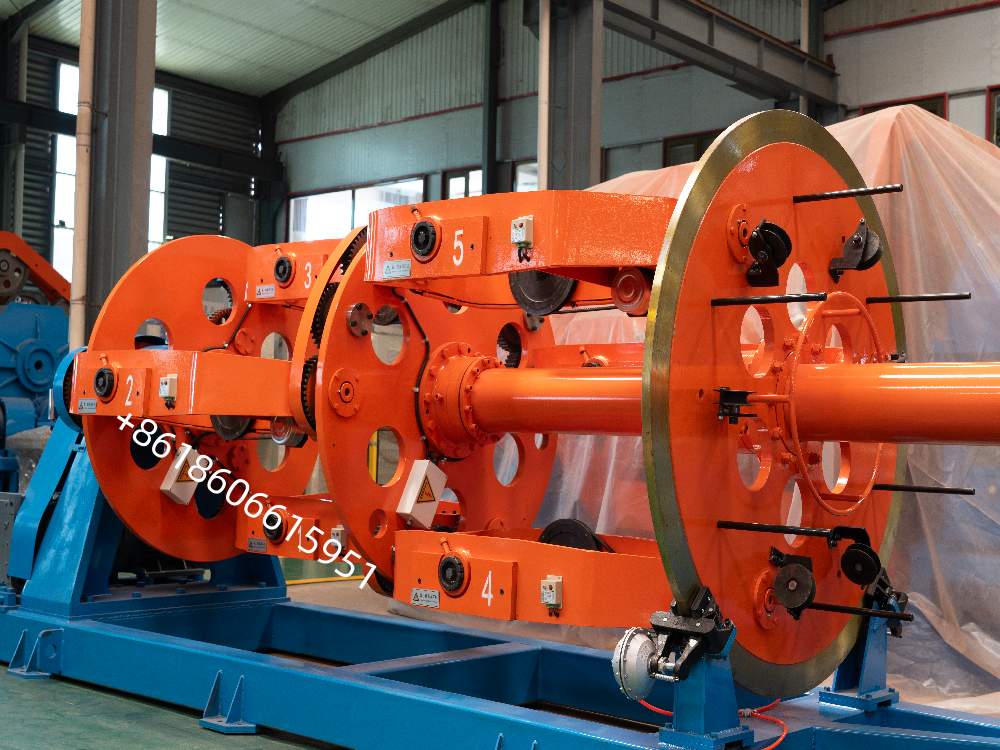

A. Stranding Head

The stranding head is the heart of the planetary stranding machine. It houses the planetary spindles and is responsible for providing the necessary rotation and movement. High - quality stranding heads are made of durable materials such as alloy steel to withstand the high - speed rotation and heavy loads during operation. They are also precisely machined to ensure accurate alignment of the spindles, which is crucial for achieving uniform stranding.

B. Drive System

The drive system powers the movement of the stranding head and the planetary spindles. It usually consists of an electric motor, a gearbox, and a set of belts or couplings. Modern planetary stranding machines often use variable - frequency drives (VFDs) to control the speed of the motor, allowing for precise adjustment of the stranding speed according to different production requirements.

C. Wire Feeding System

The wire feeding system is responsible for supplying the individual wires or conductors to the stranding head. It typically includes wire reels, tensioners, and guides. The tensioners play a vital role in maintaining a consistent tension on the wires during the stranding process, preventing slack or over - tensioning, which could lead to defects in the finished cable.

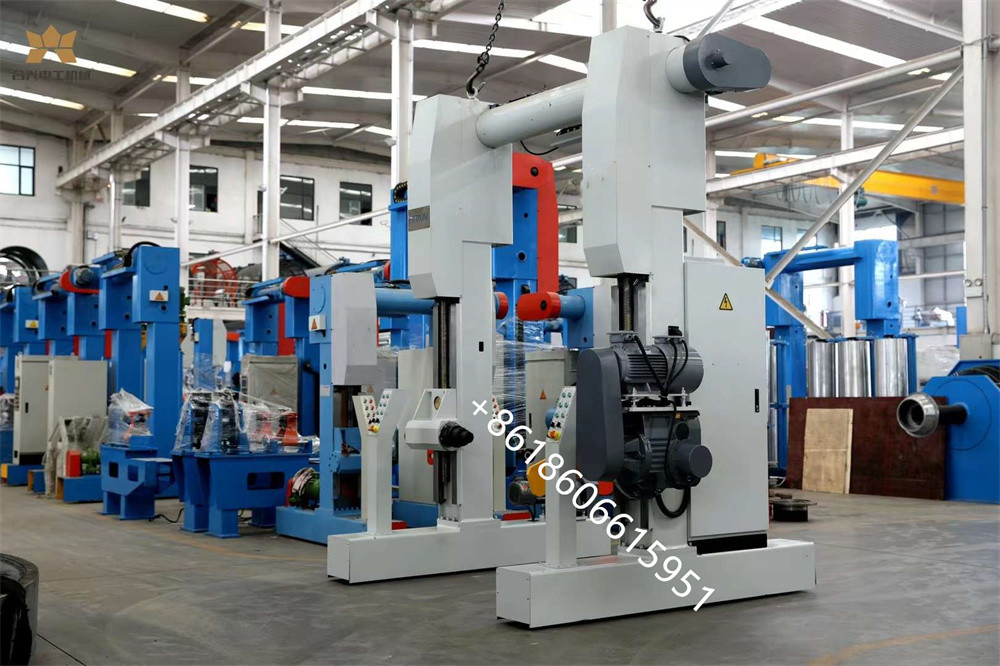

D. Take - up System

Once the wires are stranded, the take - up system winds the stranded cable onto a reel. It needs to have sufficient power and speed control to handle different cable diameters and lengths. Some advanced take - up systems also feature automatic splicing and layer - changing functions to improve production efficiency.

IV. Advantages

A. Uniform Stranding

The planetary motion of the machine ensures that each wire is evenly distributed around the central conductor, resulting in a more uniform and compact stranded cable. This uniformity improves the electrical conductivity and mechanical strength of the cable, making it suitable for high - performance applications.

B. High Production Efficiency

Planetary stranding machines can operate at relatively high speeds, significantly increasing the production output. The ability to strand multiple wires simultaneously also reduces the overall production time, making it an ideal choice for large - scale manufacturing.

C. Flexibility

These machines can be easily adjusted to accommodate different wire sizes, numbers of strands, and stranding patterns. This flexibility allows manufacturers to produce a wide range of cables, from small - gauge communication cables to large - diameter power cables.

D. Improved Cable Quality

The precise control over the stranding process provided by planetary stranding machines helps to minimize defects such as wire breakage, uneven lay length, and loose strands. As a result, the finished cables have better durability, flexibility, and resistance to mechanical stress.

V. Applications

A. Power Cables

Planetary stranding machines are widely used in the production of power cables for transmission and distribution networks. The uniform stranding ensures efficient power transfer and reduces energy losses during transmission.

B. Communication Cables

In the telecommunications industry, these machines are used to manufacture communication cables such as coaxial cables, twisted - pair cables, and fiber - optic cables. The high - precision stranding helps to maintain signal integrity and minimize interference.

C. Special - Purpose Cables

Planetary stranding machines are also suitable for producing special - purpose cables, such as aircraft cables, marine cables, and mining cables. These cables often require high strength, flexibility, and resistance to harsh environments, which can be achieved through the precise stranding process provided by these machines.

VI. Maintenance and Care

A. Regular Lubrication

Proper lubrication is essential for the smooth operation of a planetary stranding machine. All moving parts, including the stranding head, drive system, and wire feeding system, should be lubricated regularly according to the manufacturer's recommendations. This helps to reduce friction, wear, and heat generation, extending the service life of the machine.

B. Inspection and Cleaning

Regular inspection of the machine is necessary to identify any signs of wear, damage, or misalignment. The stranding head, wire guides, and other critical components should be cleaned periodically to remove any debris or contaminants that could affect the stranding quality.

C. Calibration

The machine's parameters, such as the stranding speed, tension, and lay length, should be calibrated regularly to ensure accurate and consistent performance. This can be done using specialized calibration tools and equipment provided by the manufacturer.

VII. Future Trends

A. Automation and Intelligence

With the development of technology, planetary stranding machines are becoming more automated and intelligent. Future machines are likely to feature advanced sensors, robotics, and artificial intelligence algorithms to monitor and control the stranding process in real - time. This will further improve production efficiency, product quality, and reduce labor costs.

B. Energy Efficiency

As energy consumption becomes a major concern in the manufacturing industry, there is a growing demand for more energy - efficient planetary stranding machines. Manufacturers are exploring new technologies, such as variable - frequency drives and energy - recovery systems, to reduce the energy consumption of these machines.
