    1600mm Skip Laying / Bow Twister Machine For Laying AB Cable

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 1600/1+4
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    1600mm Skip Laying / Bow Twister Machine For Laying AB Cable

    1600mm Skip Laying / Bow Twister Machuine For Laying AB Cable

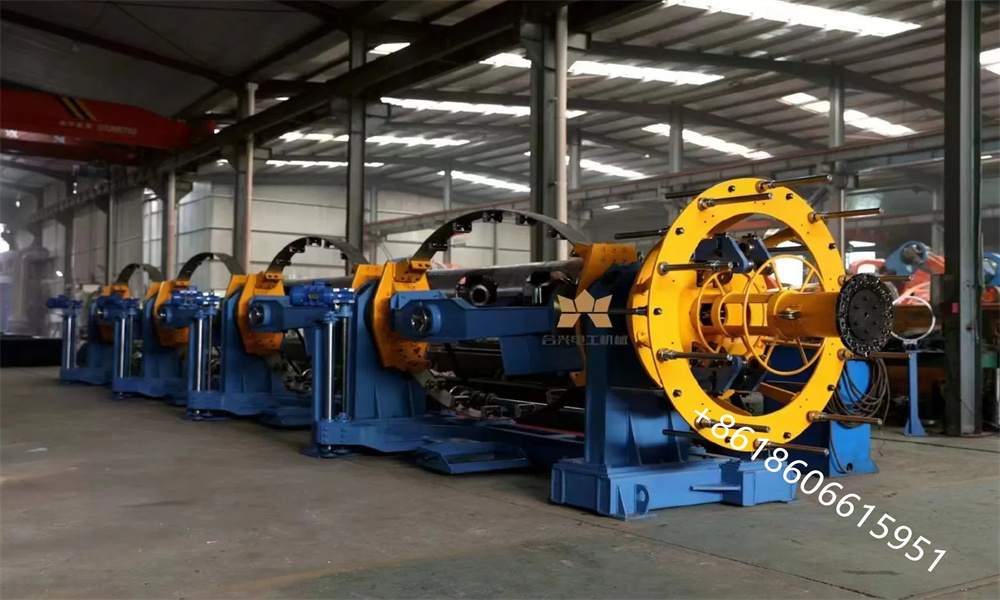

    The machine is used for laying AB Cable and laid-up of insulated round core - Bow Twister Skip Laying


    We have been manufacturing skip stranding machine and bow type stranding machine suitable for the bobbins ranging from 630mm to1600mm since 2003, we are capacble of desinging and manfuacturing the skip/bow type laying up machine/ stranding machine well-suitable to our customers' requirements. We are very good at customizing high-end cable machines and equipments for our customers.

    We have been producing high speed skip type/bow type laying up machine/stranding machine/bow type stranding/twisting machine, double twist bunching machine since 2008 and have exported many sets of this kind of machines to our overseas customers from Italy, Spain, Morroco, Romania, Slovakia, Chile, Ecuador, Bolivia, Brazil, Japan, Vietnam, Thailand, Russia, Uzbekistan and Iraq etc. We have been dedicated into making cable machine for over 3 decades; I am pretty sure that we can offer you the best solution for the cable production line with the most competitive price and excellent service.


    Main technical parameters for our new type skip stranding machine/bow type stranding machines are as follows:


    ModelBobbin sizeMax. rotary speed of strand bow (Max. RPM)Max. OD of cored wires (mm)Max. loading capacity(kg)
    2B3B4B5B6B
    GJ500Φ5001000Φ12500
    GJ630Φ6301000Φ18700
    GJ800Φ800800800800700700Φ20800
    GJ1000Φ1000450450450450450Φ241000
    GJ1250Φ1250400400400360360Φ322500
    GJ1600Φ1600350350350300360Φ504500


    1600mm Skip Laying / Bow Twister Machine For Laying AB Cable

    Our Service
    Pre-sales service including:
    - Analyse customer's inquiry and reply to customer within 12 hours after receiving the inquiry from customer.
    - Communicate with customer and help customer to choose the well-suitable machines for customer.
    - Sending drawings to customer for confirmation to make all is clear before placing order with us.
    - Prepare the final proposal for customers
    - Invite customer to visit our factory or we can visit our customer's factory to held a face-to-face meeting if possible
    After-Sales Service
    - Training customer's workers how to install, operate and maintain our machines
    - Engineers available to provide overseas maintenance service for all our machines working abroad.
