    Copper Wire and Cable Making Rigid Frame Stranding Machine Manufacturers Suppliers

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 630/1+6+12+18
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Copper Wire and Cable Making Rigid Frame Stranding Machine Manufacturers Suppliers

    Copper Wire and Cable Making Rigid Frame Stranding Machine Manufacturers Suppliers


    Product Description

    Why choose BEYDE???
    1.Our cable machine factory has been in operation since 1983
    2.We have a professional design team, engineering team, and production team
    3.We can provide you with on-site installation and training on machine usage services
    4.Free provision of some consumables for one year
    5.We can design a factory for you according to your needs and create a cable factory that belongs to you
    6.We specialize in cable equipment, including stranding machines, extruders, wire drawing machines, as well as various testing and auxiliary equipment
    main components

    1.Φ630Shaft-less pay-off rack
    2.'#' type leading wire stand
    3.6-Bobbins,12-Bobbins,18-Bobbins twister
    4.Wire-stranded and Tight pressing line die holder
    5.Overall hanging device under the side
    6.Track meter counting
    7.Φ600Double bobbins wrapped device
    8.Φ2000Two wheeled device with double-power
    9.Φ2600Portal pay-off and take-up stand
    10.Electric control system
    11.Arc type electric protective cover

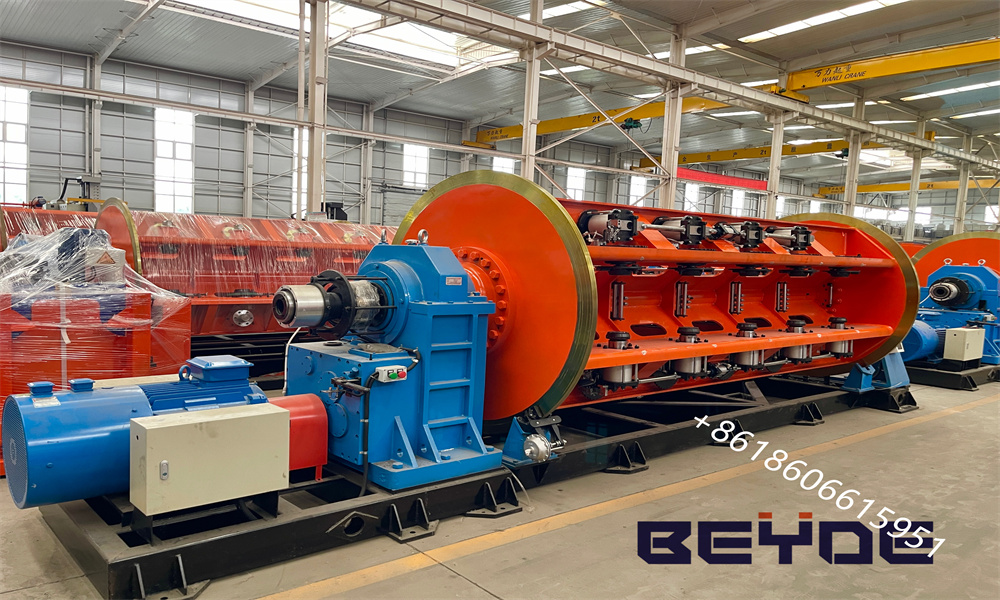

    This machine is used for stranding bare copper,aluminum and ACSR conductor with compacting use
    Model Main SpecificationCLK400CLK500CLK630
    Single Wire Diameter1.2mm-5mm1.2mm-5mm1.2mm-5mm
    Max Stranded Diameter50mm50mm50mm
    RPM88-200r/min78-189r/min65-143r/min
    Stranding Pitch49-630mm49-816mm58-978mm
    Line speed55.35m/min63.63m/min63.63m/min
    Pay Off Drum Size In CagePN400mmPN500mmPN630mm
    Central Pay Off Drum DiameterPN800-1600mmPN800-1600mmPN800-1600mm
    Take Up Drum DiameterPN800-1600mmPN1000-2000mmPN1000-2000mm


    Beyde has three factories, covers an area of 120000 square meters.They are located in Nanhai District, Foshan. Our company has a technical administration team who engages wire and cable equipment industrial more than ten years, as well as experienced engineer and skilled workers. Our company focuses on innovation and R & D of electrical machinery.Our products include cable laying up machine,cable stranding machine, cable extrusion machine and auxiliaries.We not only in the domestic sales, but also far sales in Asia, Southeast Asia, Africa and so on.
