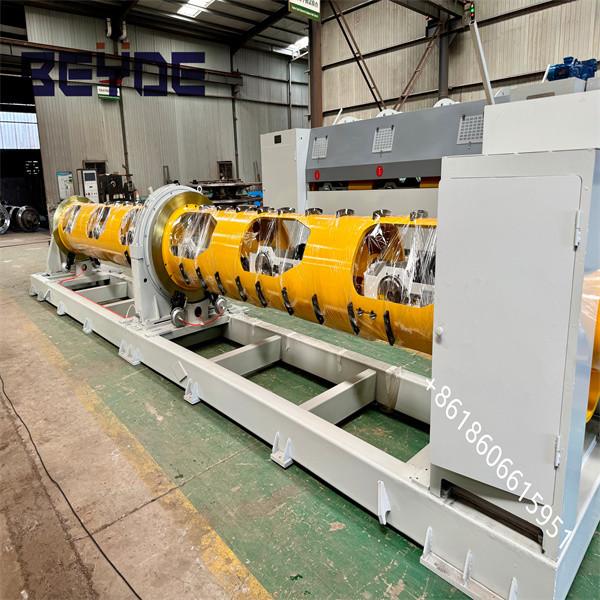

    Industrial Wire Making Machine 630 Type Tubular Stranding Machine For Steel Wire

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 630 1+6
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Industrial Wire Making Machine 630 Type Tubular Stranding Machine For Steel Wire

    Industrial Wire Making Machine 630 Type Tubular Stranding Machine For Steel Wire


    1. Application

    This kind of machine is used to make copper stranded wire,steel-core aluminium stranding wire and steel rope. It also can be used to stranded steel wire and insuated wire.

    1.1 Copper/Aluminum/Steel Wire Stranding

    1.2 Steel Rope Stranding

    1.3 OPGW Cables Stranding


    2. Technical parameters

    Model (Tubular Stranding Machine)


    JGG-400JGG-500JGG-630
    Diameter of single wire

    Copper


    φ1.2-2.6 mmφ1.4-4 mmφ2-7 mm

    Aluminum


    φ1.8-2.6 mmφ1.8-4 mmφ2-7 mm

    Maximum stranded conductor OD


    φ7 mmφ10 mmφ12 mm
    Stranding Pitch6 Bobbin Stranding Cage37-281 mm44-338 mm82-620 mm
    12 Bobbin Stranding Cage37-281 mm44-338 mm82-620 mm
    18 Bobbin Stranding Cage44-334 mm44-338 mm82-620 mm
    Rotate Speed6 Bobbin Stranding Cage600 r/min600 r/min400 r/min
    12 Bobbin Stranding Cage600 r/min500 r/min300 r/min
    18 Bobbin Stranding Cage450 r/min400 r/min230 r/min
    CapstanCapstan Wheel Diameterφ600 mmφ800 mmφ1000 mm

    Maximum Haul-off Force


    3T5T5T

    Motor Power


    22 KW30 KW37 KW

    Bobbin Size


    400 mm500 mm630 mm

    Center Payoff Bobbin


    400 mm500 mm630 mm

    Take-up Bobbin


    1250 mm1600 mm2000 mm

    Components
    No. Items Quantity
    1 Φ 630mm Manual pay-off stand 1 Set
    2 Φ 630/6 Bobbins cage 1 Set
    3 Wire-stranded mould stand 1 Set
    4 Meter counter 1 Set
    5 Φ 120mm Double capstan wheels 1 Set
    6 Φ 1600mm Column type take-up with traverse 1 Set
    7 Transmission system 1 Set
    8 Electric control system 1 Set
    9 Safe cover 1 Set
