Mechanic and Electric Meter Counter Rigid Stranding Machine for Easy Wire Length Control

Technical sheet

Application: This machine is mainly used to produce large section and large length steel cored aluminum strand and aluminum alloy wire; It can also be used for pressing of copper round and aluminum conductor.

Main components:

Technical parameter of each components:
Ø2000 Column Pay-off:

Specification of pay off reel: PN1000 ~ PN2000
Max load capacity: 10T
Reel width: 750-1500mm
Reel tip hole diameter: Ø80/125mm
Pay-off tension : mechanical friction and can be adjusted.
Electric lifting reel and electric clamping or loosening reel.
Clamp, loosen, rise, and fall actions. Ensure the reliable positioning of the wire reel. The lifting mechanism can lift and lower the left and right simultaneously or move independently. The left column can be moved independently to facilitate the clamping of the wire reel. The up and down lifting is protected by electrical limiters.

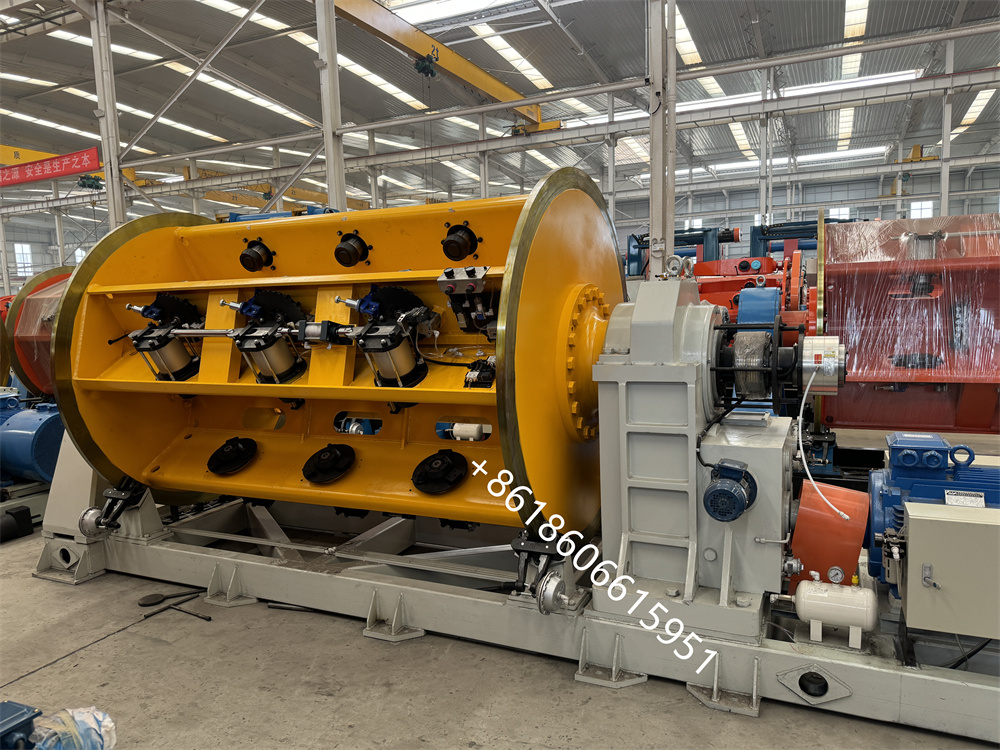

12+18+24 bobbin stranding cage:

Adapt bobbin size: PND630
Max rotating speed of stranding cage:

12 bobbins: 200r/min(full load loading wire),
18 bobbins : 180r/min (full load loading wire)

Stranding cage motor power:

12 bobbin : 75kw (AC)
18 bobbin : 75kw (AC)

18 bobbin : 75kw (AC)

Pitch range: Stepless adjustable
Each section of the stranding cage is driven by a separate AC motor through a special gearbox, which can rotate left and right.
Strand cage structure: The entire strand body is double-supported on the front and rear support frames, with a seamless steel pipe support in the middle. After welding, the overall frame is annealed at high temperature, aged, and cooled naturally after 72 hours.
Tension form: mechanical friction control, tension size is manually adjustable
The loading and unloading reel uses a worm gear mechanism to drive the telescopic tip, with the help of a nut gun. After the wire reel is clamped, it has a mechanical stop function to effectively ensure safe and reliable loading of the wire reel.
Wire-break parking: The system uses pulse-type wire-break protection to control each reel. The DXJ fully automatic detection device can stop the machine in time when a wire is broken or the wire is used up, and prompts show on the touch screen.
Protective fence: Equipped with a double-sided wall fixed protective net, made of porous plates and rectangular square tubes welded.
Loading reel tool: Each stranding cage is equipped with a set of loading tray lifting and turning tools
Single wire pre-former: Each section of stranding cage is equipped with a set of single wire preforming device. The single wire preforming device is used for round single wire stranding to ensure that the single wire is not loose after the conductor section is disconnected after stranding.

Close wire die holder and Compacted head

Each section of stranding cage is equipped with a closing wire die rack, Adjustable distance forward and backward
The closing wire device can complete forming or drawing one time
Inner cavity size of closing wire die base: 90x90mm
Adjustable distance of closing die base: 300mm

Meter counter: (mechanical ad electric)

Perimeter of meter wheel: Ø500mm
Max meter counting length: 9999mm
Mechanical structure meter counter. It consists of two rollers placed horizontally on the linear track bearing to compress the wire through springs. Both rollers can move freely and adaptively adjust the size of the wire. The inlet and outlet are equipped with guide rollers.
Electronic meter counting function. The meter length is displayed on the touch screen of the human-machine interface. It also has a stop function when the meter is reached. The required production length can be input on the human-machine interface. After reaching the production task, the whole machine can automatically stop and prompt on the human-machine interface.

Ø 2000 forceful double wheel capstan device:

Diameter of capstan wheel: Ø2000mm
Max linear speed: 45m/min
Max traction pulling force: 10 Tons
Motor power:75kw (AC)
The traction wheel structure is double wheels and double active wheels. The traction motor drives the small gear after decelerating through the large speed rate reducer, driving the large ring gear on the two traction wheels to rotate.
The traction wheel has been tempered, the groove shape is U-shaped (5, 6 grooves), the bottom diameter is the same, and the surface of the traction wheel groove is polished..
Gear transmission, made of steel castings.
Equipped with pneumatic stop back device

Ø 2500mm Column type take-up with traverse wire:

Applicable reel range: PN1000-PN2500
Applicable wire reel width: 750-1900mm
Max load capacity: 10T
Tip diameter: 80/125mm
Max take-up speed: 55m/min
Traverse wire diameter: Ø60mm
Power of winding motor: 5.5KW (AC)
Clamping motor: 0.75KW (AC)
Lifting motor: 1.1KW (AC)x2 set
Traverse moving motor: 0.75KW(AC)
Electric lifting, clamping and relaxing the reel. It has wire reel clamping protection, extreme protection and traverse terminal protection, and is equipped with an electrical operating handle.
The take-up adopts AC variable frequency motor and is controlled by the frequency converter. The take-up tension is stable and adjustable.
The cable arrangement speed tracks the take-up speed, the cable arrangement pitch is infinitely adjustable, and has a quick arrangement function.

Electric control system:

The power supply: three-phase, five wire system: 380V (± 10%) 50Hz, total 130KW
The electrical control part consists of a power cabinet and an operation cabinet, and corresponding control buttons are installed in each unit. After the control system is connected to Ethernet, it can remotely upgrade and update the operating system, query fault codes, and perform other operations
The electrical control cabinet is designed with good mechanical properties and dustproof performance. The power cabinet and operation cabinet are equipped with dedicated air inlet and outlet cooling designs and are equipped with appropriate forced cooling fans..
The whole machine adopts PLC to coordinate and control the operation in a unified manner. Use touch screen human-machine interface operation
Motor protection function: The electrical control circuit is designed with: phase loss, overload, and overheating protection functions to prevent motor damage.
The control system can store various fault alarm records during the production process.

4.8 Safety protection devices

12. 18 cage: double-sided wall safety net (porous plate material)
Capstan wheel: low wall safety fence
Transmission system: U-shaped sheet metal safety cover

4.9 Operation direction: Right phone, that is, facing the device, left hand pay-off, right hand take-up wire
