    Sj200-25 380V Cable Extrusion Machine Wire Pvc Coating Line Sheath Production

    SJ200-25 Wire PVC Coating Line Cable Sheath Production Machine


    1.Application:

    This unit is suitable for wrapping PVC, PE, XLPE, low smoke and halogen-free thermoplastic cable materials by hot extrusion. It use double pay-off and double take-up structure.


    Electrical control characteristics

    ----The control system is based on PLC, and PLC sends out control instructions. PLC completes the single action or linkage control requirements of the production line, and realizes the monitoring of the operation status and operation parameters of the production line

    ----The software package of control system has the function of uploading and downloading all kinds of cable production process formula, and can download the corresponding control formula parameters according to the cable parameters to be processed

    ----The control system has the function of recording and printing the operation status and alarm status of production line equipment

    ----The constant tension control mode is adopted for front and rear traction to ensure the constant Online Tension of double traction. The tension can be set and modified manually


    2. The main technical parameters

    2.1Wire core dia.φ30-φ155mm
    2.2Sheath out dia.φ40-φ170mm
    2.3Host machine screw rod diameterφ200mm
    2.4Screw rod L/D25:1
    2.7Main machine screw rod speed0-50r/min
    2.8Main machine max extrusion capacity1300kg/h(PVC) :800kg/h(LDPE)
    2.10Traction device line speed3-50m/min
    2.11Max traction force4000kg
    2.12Pay-off bobbin sizePN1600-PN2500
    2.13Take-up bobbin sizePN1600-PN2500
    2.14Full machine total power380KW

    3.Main Component

    3.1LMS2500 Portal type pay-off machine2 set

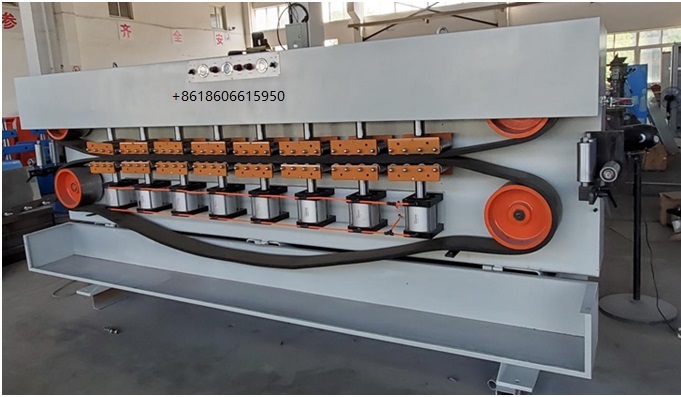

    3.2TQDV3000kg flat belt pneumatic caterpillar (8 pairs of cylinders)1 set

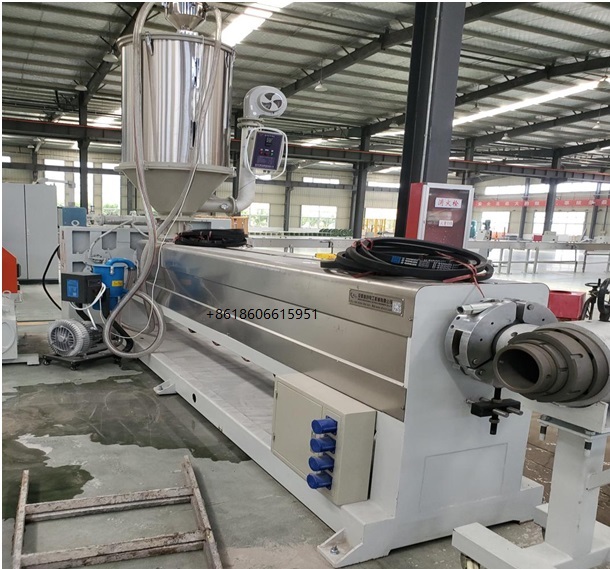

    3.3SJ-200/25 extruder host1 set
    3.5machine head (φ170mm)1 set
    3.6Automatic drying and feeding system (600kg drying, 1000kg / h automatic suction)1 set
    3.74m movable + 28m fixed stainless steel cooling water tank1 set
    3.8Blow Drying device1 set
    3.10TQDV4000kg flat belt pneumatic caterpillar (10 pairs of cylinders)1 set
    3.11LMS2500 Portal type take-up and traverse line machine2 set
    3.12Electrical control system of unit1 set
    Siemens touch screen PLC system control mode is adopted, touch screen and speed control unit are operated by cantilever box, 590 series DC speed governor, and low-voltage electrical appliances are selected from Schneider and Chint brands. There are two electric control cabinets for temperature control and speed control.
