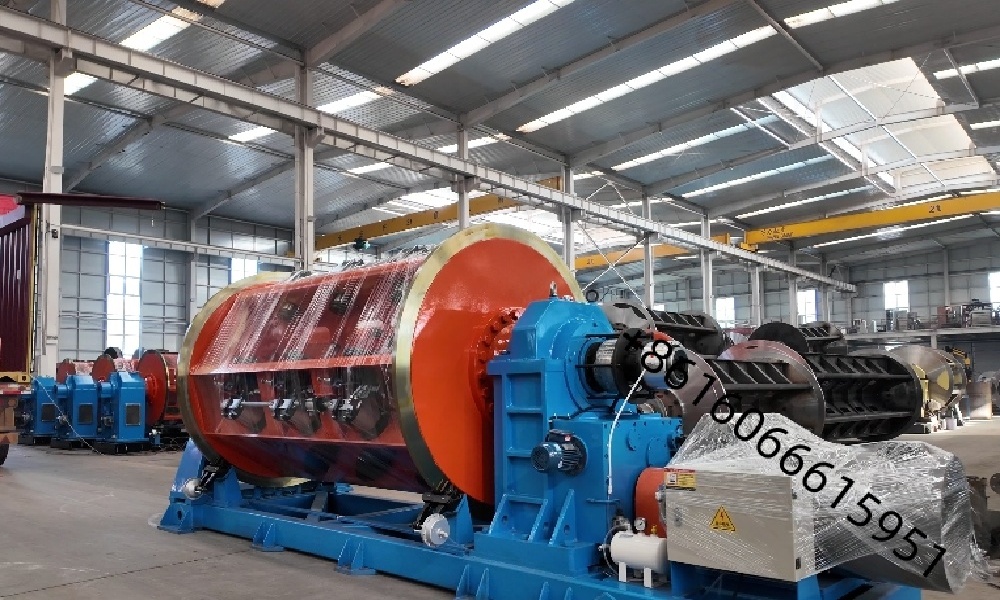

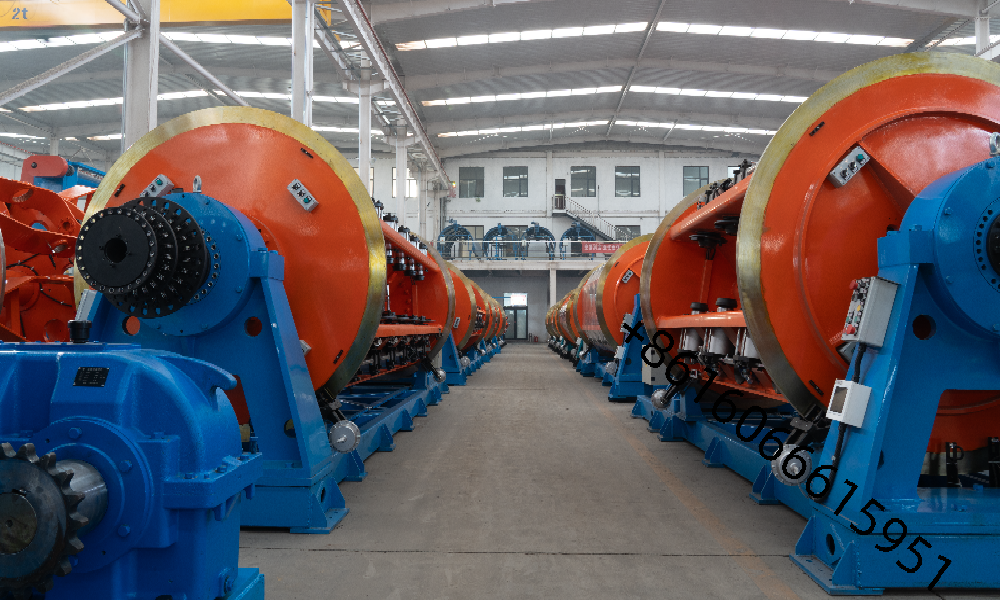

Amored Cable Screening Machine JLK630/1+18 With Long Time Warranty
This machine is mainly used to copper wire shielding.
Overview of equipment composition
The equipment is composed of PLC program control+touch
screen+variable frequency speed control+pneumatic control. The
synchronous performance deviation of the equipment from startup,
normal operation, slow shutdown, emergency stop and other states
shall not exceed 3% to ensure stable stranding. The electric
control system is advanced, easy to operate and reliable
Input wire diameter | Ø 0.6-2.0mm(2-4 wire/ bobbin) |
Max stranding OD | Ø60mm |
Max rotation speed | 80r/min(Cu) |
Strand cage motor power | 55KW(AC) |
Strand pitch(set one PLC) | 300-1500mm (stepless adjustable) Customer provice |
Traction line speed | 61m/min max |
Capstan motor power | 45KW(AC) |
Pay-off reel size in cage | PND630 |
Max Capstan force | Ø 2500kg |
Central pay-off reel size | PN1600-PN2800 |
Take-up bobbin reel size | PN1600-PN2800 |
Machine center high | 1000mm |
2800mm Portal type Pay-off rack
# guide line rack
18 bobbins strand cage
18 bobbin Concentrated loading bobbin device
Pre-forming head (Integrated with host)
Close die holder
Mechanic digital Meter counter
2500kg Powerful pneumatic caterpillar
2800mm portal type take-up device
Electric control cabinet
Safety protection fence and cover
Electric control system:
The power supply: three-phase, five wire system: 380V (± 10%) 60Hz
The machine adopts separate motor drive (the motor adopts
variable-frequency motor), each AC variable-frequency motor adopts
frequency converter to control speed regulation, the whole machine
control is managed by Siemens programmable controller, the Siemens
touch screen controls operation, and the host is started after the
alarm bell rings.
Frequency converter fault alarm.
Overload protection and power supply protection of winding and
arranging lines.
Air press lack protection.
Break wire protection
Equipped with Ethernet interface for data uploading.
Bearing brand | (Harbin,.) |
Low voltage appliance brand | (Chint) |
Brand of pneumatic component | (AIRTAC) |
Brand of main drive motor | (Jianghuai Lu’an) |
Frequency conversion controller | (Inovance) |
Touch screen | (Siemens KT P1200) |
PLC | (Siemens S7-200 Smart) |
![]() |
